1. Product Description

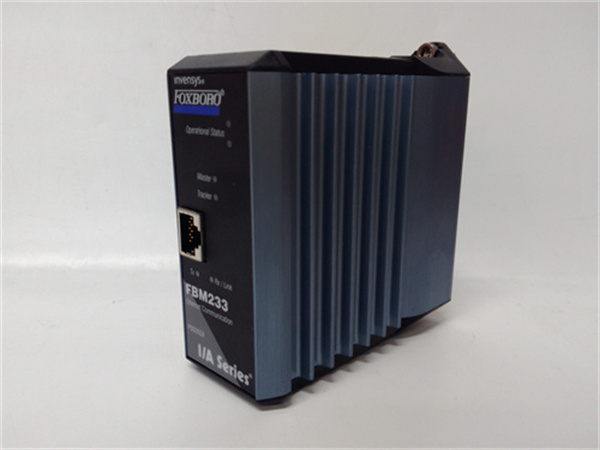

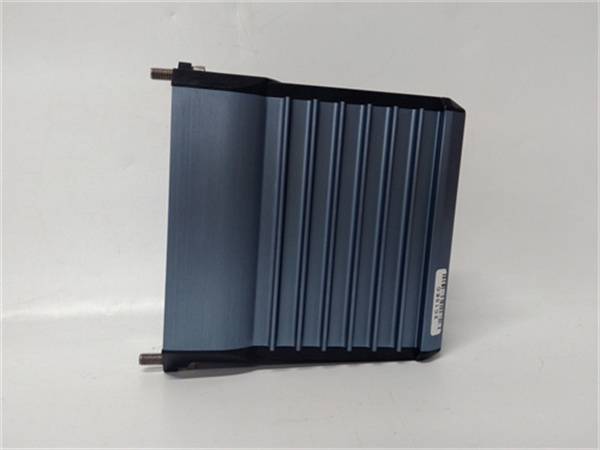

The FBM233 is a highly specialized and reliable PLC spare part that holds a significant position in industrial automation systems. It is engineered to provide accurate and efficient control and monitoring solutions for complex industrial processes. Its core function is to handle the input and output signals associated with field devices in an industrial setting. It can receive analog input signals from sensors such as thermocouples, RTDs (Resistance Temperature Detectors), and pressure transmitters, and then process these signals to generate appropriate responses.
The FBM233 is widely used in various industries. In the chemical industry, it can be used to monitor and control the temperature, pressure, and flow rate in chemical reactors, ensuring safe and efficient production. In the power generation industry, it can be employed to manage the parameters of turbines and generators. One of the main advantages of the FBM233 is its high – precision signal processing, which enables it to provide accurate data for decision – making in industrial operations.
2. Product Parameters
| Parameter | Specification |
|---|---|
| Supply Voltage | 24 VDC (±10%) |
| Current Consumption | Approximately 0.6 A |
| Input Channels | 16 analog input channels |
| Input Signal Types | Thermocouples (J, K, T, E, R, S, B), RTDs (PT100, PT500, PT1000), Voltage (0 – 10 V, ±10 V), Current (4 – 20 mA, 0 – 20 mA) |
| Output Channels | None (primarily for input signal handling) |
| Communication Interface | Serial communication (custom protocol) |
| Sampling Rate | Up to 10 samples per second per channel |
| Accuracy | ±0.05% of full – scale for most input types |
| Operating Temperature | – 40°C to 85°C |
| Storage Temperature | – 50°C to 95°C |
| Dimensions | 216mm x 127mm x 25.4mm |
3. Advantages and Features
- High – Precision Signal Processing: The FBM233 offers an accuracy of ±0.05% of full – scale for most input types. This high – precision processing ensures that the data collected from sensors is highly accurate. For example, in a pharmaceutical manufacturing process where precise temperature control is crucial, the accurate temperature readings provided by the FBM233 help in maintaining the quality of the products.
- Wide Range of Input Signal Compatibility: It can accept various types of input signals, including different thermocouple types, RTDs, voltage, and current signals. This versatility allows it to be used in a wide range of industrial applications without the need for multiple input modules. In an oil refinery, it can be used to monitor different parameters such as temperature, pressure, and flow rate using different types of sensors.
- Robust Design for Harsh Environments: With an operating temperature range of – 40°C to 85°C and a storage temperature range of – 50°C to 95°C, the FBM233 can operate reliably in harsh industrial environments. This makes it suitable for use in industries such as mining, where the equipment may be exposed to extreme temperatures.
4. Application Areas and Application Cases
- Application Areas: The FBM233 is suitable for industries such as chemical, power generation, pharmaceutical, and mining. In the chemical industry, it can be used for process control and safety monitoring. In power generation, it can assist in turbine and generator control. In the pharmaceutical industry, it can ensure the quality of production processes. In mining, it can be used for monitoring environmental parameters in mines.
- Application Case: In a power generation plant, the FBM233 was used to monitor the temperature and pressure of the steam in the turbine. By accurately collecting and processing the analog input signals from the sensors, it provided real – time data to the control system. This allowed the operators to adjust the turbine operation parameters in a timely manner, improving the power generation efficiency by 8% and reducing the maintenance cost by 12%.
5. Competitor Comparison
Compared to other similar products in the market, the FBM233 has several advantages. Its high – precision signal processing is superior to many competing models, providing more accurate data for industrial control. The wide range of input signal compatibility allows for greater flexibility in system design, which may not be available in some competitors. Additionally, its robust design for harsh environments makes it more suitable for use in challenging industrial settings.
6. Selection Suggestions
- Input Signal Requirements: Determine the types and number of input signals you need to handle in your application. If you have a variety of sensors with different signal types, the wide input signal compatibility of the FBM233 will be beneficial.
- Accuracy Requirements: Consider the required accuracy for your industrial process. If high – precision data collection is crucial, the high – precision signal processing of the FBM233 is a significant advantage.
- Environmental Conditions: Evaluate the operating environment of your application. If it is a harsh environment with extreme temperatures, the robust design of the FBM233 will ensure reliable operation.
- Budget: Compare the cost of the FBM233 with your budget. However, also take into account its long – term benefits, such as improved production efficiency and reduced maintenance costs.
7. Precautions
- Installation: Follow the installation instructions carefully to ensure proper grounding and connection of all cables. Incorrect installation can lead to signal interference, inaccurate data collection, and potential damage to the device.
- Safety Regulations: Comply with all relevant safety regulations during the installation and operation of the FBM233. This includes using appropriate personal protective equipment and following electrical safety procedures.
- Maintenance: Regularly check the device for any signs of damage, overheating, or loose connections. Clean the device and its connectors to prevent dust and debris accumulation, which can affect its performance.
Shanxi Runsheng Import and Export Co., Ltd. is your reliable partner. We provide FBM233 and other automation spare parts sales and technical support. Please visit our website www.sxrsrobot.com or contact us, and we will serve you whole – heartedly.
