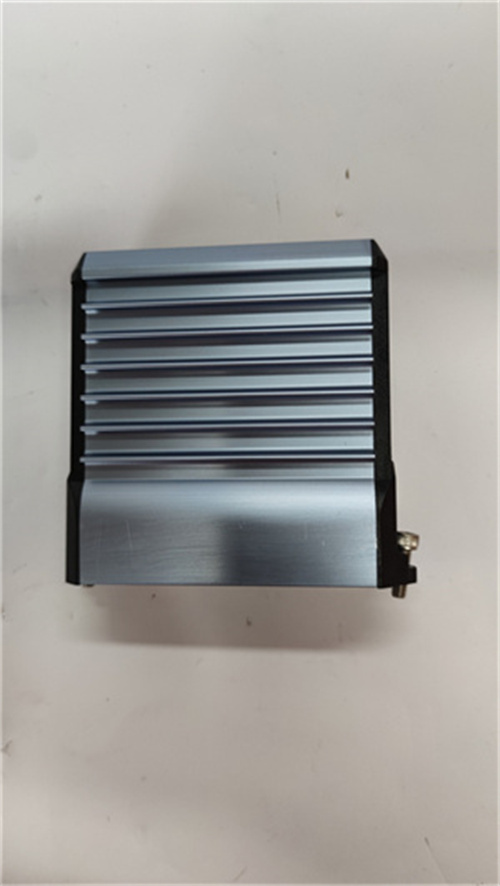

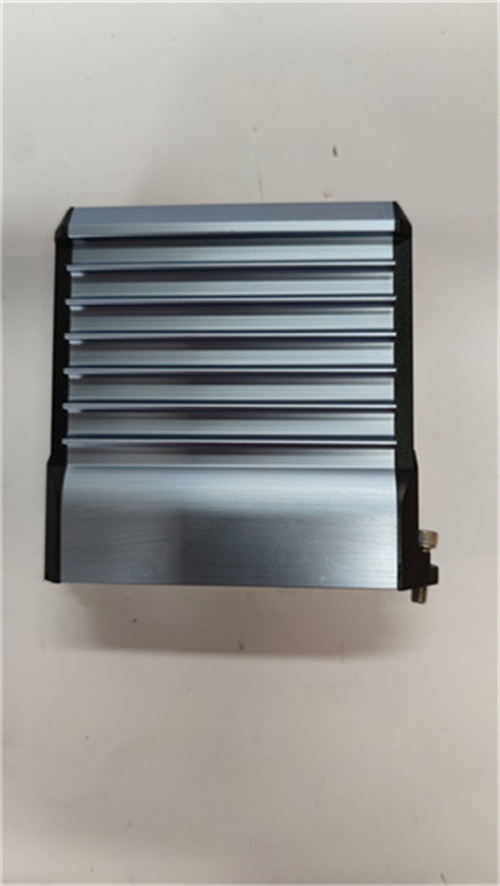

FBM217

¥6,025.00

Parameters and specifications:
Input channels: 32 independent channels.
Input range (per channel) : open circuit voltage 15-30V dc, short circuit voltage 0-5V dc.
Input impedance: ON-state 1 kW (Max), at 15 V dc; OFF- Status 100 kW (min) at 30V dc.
Communication: Communicate with FCM and FCP through fieldbus.
Power requirements: 24 V dc +5%, -10%.
Power consumption (Max) : 3W (Max) 24V dc.
Heat dissipation (Max) : 5W (Max) at 24V dc.
Current: 4 mA (typical) at 5 to 60 V dc.
Vibration: 0.75g (5 to 200Hz).
Isolation: Channels are isolated from each other and from the ground.
Category:

Description

Parameters and specifications:
Input channels: 32 independent channels.
Input range (per channel) : open circuit voltage 15-30V dc, short circuit voltage 0-5V dc.
Input impedance: ON-state 1 kW (Max), at 15 V dc; OFF- Status 100 kW (min) at 30V dc.
Communication: Communicate with FCM and FCP through fieldbus.
Power requirements: 24 V dc +5%, -10%.
Power consumption (Max) : 3W (Max) 24V dc.
Heat dissipation (Max) : 5W (Max) at 24V dc.
Current: 4 mA (typical) at 5 to 60 V dc.
Vibration: 0.75g (5 to 200Hz).
Isolation: Channels are isolated from each other and from the ground.
Features:
High reliability: The FBM217 has the potential to provide high reliability and stability to meet critical application requirements in industrial automation systems.
Multi-channel input: provides 32 independent channels to support multi-signal input and processing.
Programmability: Possible support for programming and configuration to suit different application requirements.
Fieldbus communication: Communicate with the main control station through the fieldbus to realize data exchange and monitoring.
Functions:
The FBM217 may be used in industrial automation systems as a controller or interface module to receive and process signals from field equipment to achieve monitoring and control of equipment status. It may work in conjunction with the master control station or other equipment to complete automated control tasks.
