Description
Parameters and specifications:
Number of input channels: 16 isolated independent channels.
Input range (per channel) : 0 to 20.4 mA dc (current limited to 33 mA per channel).
Communication: Communication with its associated FCM or FCP via a redundant 2 Mbps module fieldbus.
Input voltage range (redundancy) : 24V DC +5%, -10%.
Power consumption: 7 watts at 24 volts DC (Max), 20.4 MA for all inputs (internal power).
Operating temperature: -40 ° C to 70 ° C (or -40 ° C to 85 ° C, depending on series).
Size and weight:
Dimensions (HxWxD) : Approximately 10.2 cm /11.4 cm (including mounting lugs) x 4.5 cm x 10.4 cm.
Shipping weight: about 2 kg.
Series:

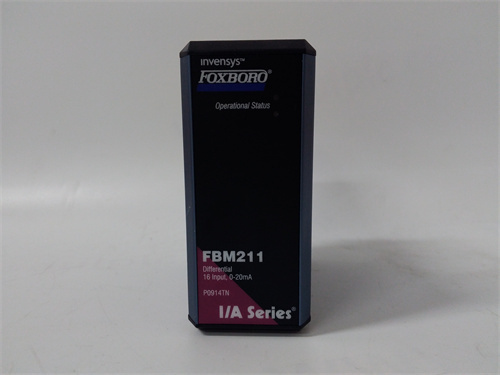

FBM211 RH914TN series, etc.
Features:
Modular design: easy to install and maintain.
Sixteen 20mA dc analog input channels, each group of eight input channels are group isolated.
Compact, rugged design for installation in G3 (harsh) environments.
High precision for each channel is achieved through sigma-delta data conversion.
High reliability: Made of high quality materials, rigorously tested and verified.
Functions:
As an input/output module in the field of industrial automation, the FBM211 provides users with reliable and efficient control and monitoring solutions.
Widely used in industrial automation systems to connect field meters and control rooms to help customers optimize assets, increase productivity and reduce operating costs.
