Description

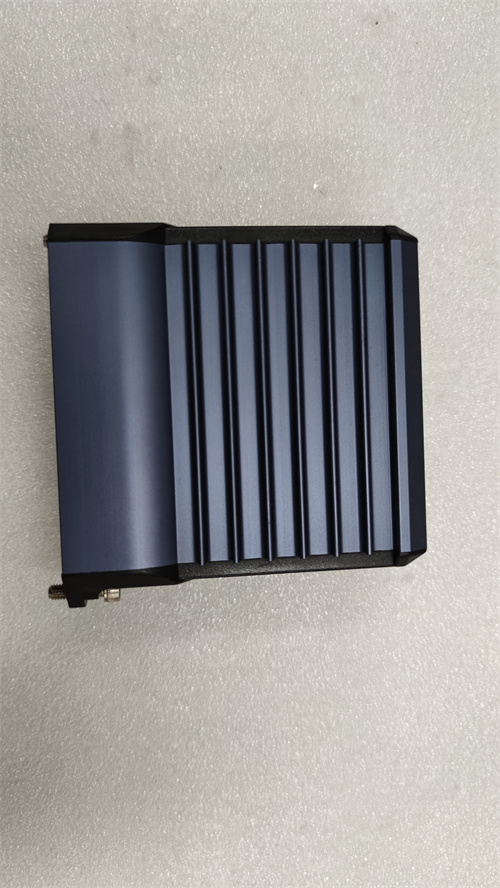

FOXBORO FBM204 is a module within the Foxboro series, widely used in industrial automation control systems. Here is a breakdown of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Model Number: FBM204.
Input/Output Channels: The module features four 20 mA dc analog input channels and four 20 mA dc analog output channels.
Communication: It communicates with the main control station through an optional redundant 10Mbps Ethernet-based fieldbus.
Communication Protocol Conversion: The Fieldbus Communication Module (FCM) converts between the 2Mbps communication protocol used by FBM and the 10Mbps communication protocol used by the Ethernet fieldbus.
Dimensions and Weight:
Dimensions: While the exact dimensions may vary depending on the product version or customization, some sources indicate dimensions of approximately 8.9cm x 12.7cm x 3.8cm (or approximately 3.5 inches x 5 inches x 1.5 inches). Others may have slightly different measurements, so it’s important to refer to the official documentation for the most accurate information.
Weight: The weight may also vary depending on the specific configuration. Some sources indicate a weight of approximately 0.2 kilograms (or approximately 0.44 pounds), but it’s advisable to consult the manufacturer’s specifications for the most up-to-date and accurate weight information.
Series:
FBM204 belongs to the FBM series of Foxboro industrial automation products.
Features:
Isolation: Each input and output channel is electrically isolated.
Robust Design: The module features a sturdy extruded aluminum housing that provides circuit protection.
Visual Status Indication: Integrated red and green LEDs provide visual status indication of the FBM functionality.
High Accuracy: The module provides high accuracy by sampling analog input readings every 25 milliseconds and offering configurable integration periods to eliminate any process and/or noise and power line frequency interference.
Redundant Communication: The ability to communicate over a redundant Ethernet fieldbus ensures reliable communication paths.
Functions:
The FOXBORO FBM204 module serves as a crucial component in industrial automation systems. It receives analog input signals from sensors, converts them if necessary, and provides control outputs to actuators or other devices. Its role is to facilitate data exchange and communication between different components of the control system, enabling seamless operation and optimization of industrial processes.
