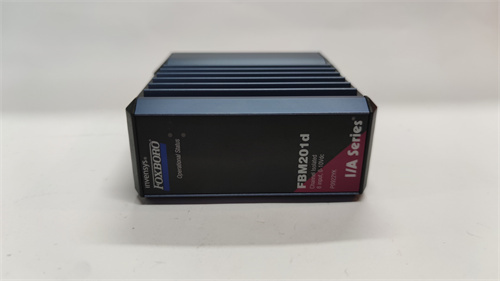

FBM201D

Description

trait
Highly intuitive design environment: Provides graphical configuration and real-time update of loop graphics
Isolation design: Each analog input channel is isolated from other channels and ground currents
Rugged: Compact and rugged design for enclosures in G3 (harsh) environments
High precision: High precision is achieved through the sigma-delta data conversion of each channel
Configurable options: Provides configurable options for conversion and integration times and rate of change limits
Communication capability: Communication with its associated FCM or FCP via a redundant 2 Mbps module fieldbus

argument
Product type: Analog input interface module
Input channels: 8 isolated, independent channels that support a range of analog sensor signal inputs, including 0 to 20mA DC (FBM201), 0 to 100mV DC (FBM201b), 0 to 5V DC (FBM201c), 0 to 10V DC (FBM201d)
specification
Resolution: May vary depending on the specific application scenario and configuration, but generally provides high accuracy
Measurement accuracy: High precision, achieved through the sigma-delta data conversion of each channel
Calibration requirements: No calibration modules and terminal components are required
dimension
Length x width x height: 10.4 cm x 4.5 cm x 11.4 cm
weight
Weight: 0.284 kg
Shipping weight: 2 kg
series
Series: As a product of the FOXBORO brand, the FBM201D is one of the analog input interface modules in the series

effect
Analog input interface: The FBM201D serves as an analog input interface module for receiving signals from various analog sensors, such as temperature, pressure, flow, etc., and converting these signals into digital signals for further processing and control
Industrial automation: In the industrial automation system, the FBM201D is a key component for the acquisition, processing and transmission of data, providing strong support for the stable operation and efficient control of the entire system
