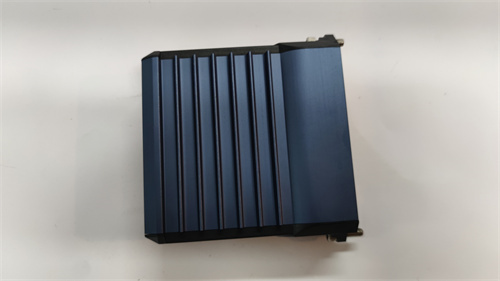

FBM201

Description

The FOXBORO FBM201 parameters are as follows:

Input channel. 8 isolated and independent channels.
Enter the range. The FBM201 is 0 to 20mA DC; The FBM201b is 0 to 100mV DC; The FBM201c is 0 to 5V DC; The FBM201d is 0 to 10V DC.
Power consumption. Max. 7W.
Heat dissipation. Max. 3W.
Calibration requirements. No calibration modules and terminating assemblies are required.
Operating environment temperature. -40 to +70°C (-40 to +158°F).
Relative humidity. 5 to 95% (non-condensing).
The altitude. -300 to + 12,000 m (-1,000 to + 40,000 ft).
The size. 10.4 cm x4.5 cm x11.4 cm.
The weight. 0.284 kg.

The FOXBORO FBM201 features the following:

Highly intuitive design environment. Graphical configuration Update cycle diagrams of the field engineering environment in real time, integrating a common database of systems, controls, displays, and field equipment configuration in one tool.
Rugged once formed aluminum alloy housing. As a protective layer for electronic circuits, it improves the firmness and durability of the equipment.
Signal conversion function. This component completes the signal conversion required for the interface between the electrical input signal from the field sensor and the optional redundant fieldbus.
High-precision data conversion. Each channel includes SIGMA-DELTA data conversions for improved accuracy.
