Description
Parameters and specifications:
Type: Analog input interface module.
Input channels: 8 isolated, independent channels.
Input range:
FBM201:0 to 20 mA dc
FBM201b: 0 to 100 mV dc
FBM201c: 0 to 5 V dc
FBM201d: 0 to 10 V dc
Power consumption: 7 W (Max).
Heat dissipation: 3 W (Max).
Process I/O communication: communicates with its associated FCM or FCP via a redundant 2 Mbps module fieldbus.
Features: Compact, rugged design for enclosures in G3 (harsh) environments. Configurable options for conversion and integration times and rate of change limits are available. High precision is achieved through the sigma-delta data conversion of each channel.
Calibration requirements: No calibration modules and terminal components are required.
Size and weight:
Dimensions: 10.4 cm x 4.5 cm x 11.4 cm.
Weight: 0.284 kg.
Functions:

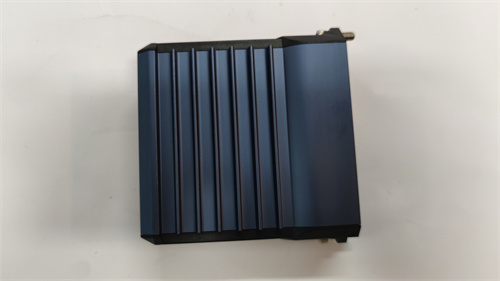

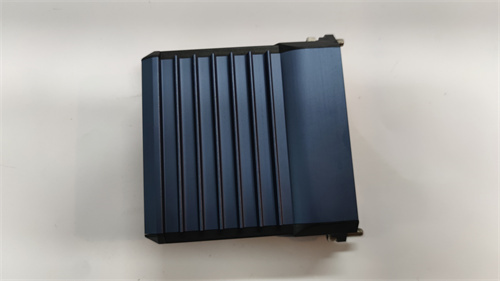

The FBM201 analog input interface module is used in industrial automation systems to receive analog sensor signals (such as current, voltage, etc.) and convert them into digital signals for use by control systems. Each channel can accept a two-wire analog sensor input, such as a 4-20mA transmitter or a self-powered 20mA signal source. The module has a completely isolated channel design, ensuring the accuracy and stability of signal transmission. In addition, the FBM201 offers terminal components for local or remote connection of field cabling to the module for easy system integration and expansion.
