Description
Parameters and specifications:
Input channels: The FBM201 provides eight isolated and independent analog input channels for receiving analog sensor signals.
Input range:
FBM201:0 to 20 mA DC
FBM201b: 0 to 100 mV DC
FBM201c: 0 to 5 V DC
FBM201d: 0 to 10 V DC
Power consumption: Maximum 7 W.
Heat dissipation: Maximum value is 3 W.
Communication interface: communicates with its associated FCM or FCP via a redundant 2 Mbps module fieldbus.
Working environment:
Temperature: -40 to +70°C (-40 to +158°F)
Relative humidity: 5 to 95% (non-condensing)
Altitude: -300 to +12,000 m (-1,000 to +40,000 ft)
Size and weight:
Dimensions: Length x width x height = 10.4cm x 4.5cm x 11.4cm.
Weight: 0.284 kg.
Series:

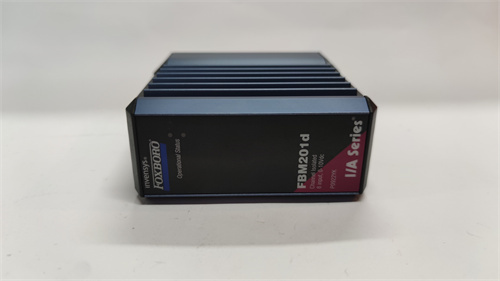

The FBM201 is part of Foxboro’s I/A series of systems, a key component of the InFusion enterprise control system.
Features:
High accuracy: High accuracy is achieved through the conversion of Σ-Δ data in each channel.
Electrical isolation: Each analog input channel is isolated from other channels and ground currents.
Rugged: Compact, rugged design for enclosures in G3 (harsh) environments.
Configuration options: Provides configurable options for conversion and integration times and rate of change limits.
Functions:
As an analog input interface module, the FBM201 is mainly used to receive and process signals from analog sensors, such as temperature, pressure, and flow. These signals can then be further processed in the control system to enable monitoring, control and optimization of the plant or equipment.
