Description
Parameters and specifications

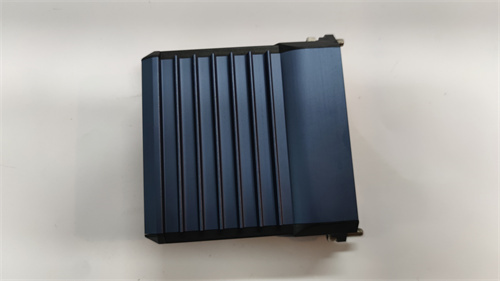

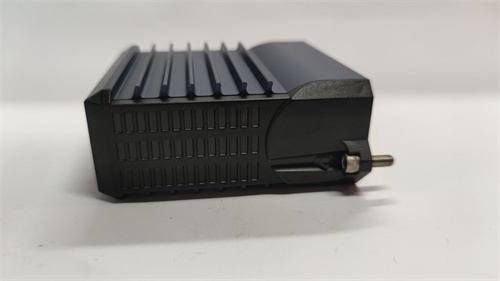

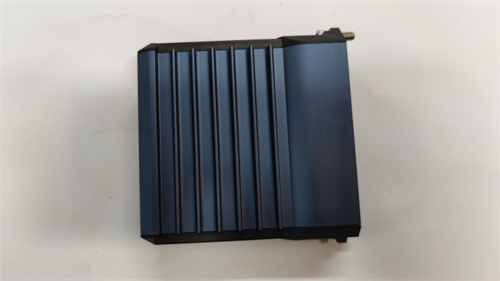

Product type: Analog input interface module.
Input type: General purpose (analog sensor signal).
Number of analog input channels: 8.
Input range:
FBM201:0 to 20 mA DC
FBM201b: 0 to 100 mV DC
FBM201c: 0 to 5 V DC
FBM201d: 0 to 10 V DC.
Power consumption: 7 W (Max).
Heat dissipation: 3 W (Max).
Operating temperature: -40 to +70°C (-40 to +158°F).
Relative humidity: 5 to 95% (non-condensing).
Altitude: -300 to +12,000 m (-1,000 to +40,000 ft).
Power supply: 220V or 24V DC may be supported, but details may vary from application to application.
Size and weight
Dimensions (L x W x H) : 10.4 cm x 4.5 cm x 11.4 cm.
Weight: 0.284 kg.
series
The FBM201 is a Foxboro product model and is not directly designated to a specific family. It could be a component of the company’s industrial automation product line.
trait
High isolation: Each analog input channel is isolated from other channels and ground currents.
High accuracy: High accuracy is achieved through sigma-δ data conversion.
Rugged: Compact for G3 (harsh) environments.
Configuration flexibility: Provides conversion times and configurable options for integral time and rate of change limits.
Communication capability: Communication with its associated FCM or FCP via a redundant 2 Mbps module fieldbus.
effect
The FBM201 is primarily used in industrial automation systems as A key component of the I/A series of systems to provide optimal performance for operators, engineers and maintenance personnel. It can execute analog input applications, maximize business operations in real time, and help improve plant performance. In addition, it can be used to connect the field cabling locally or remotely to the terminal components of the FBM201/b/c/d module to support the processing of various analog input signals.
