Description

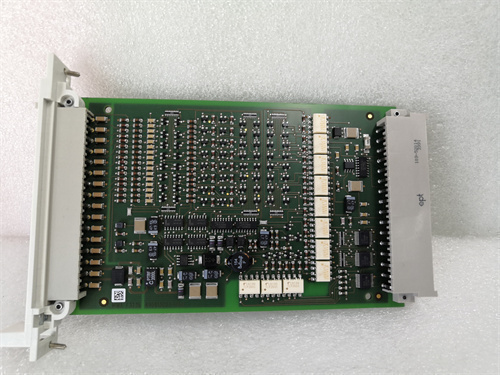

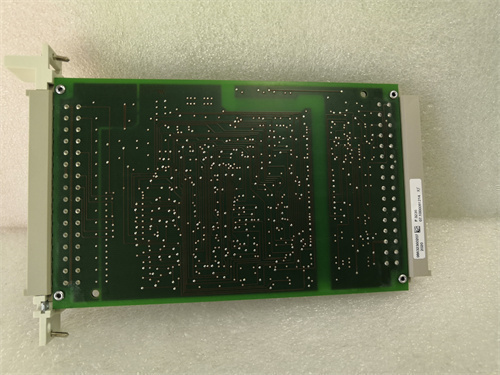

The parameters of HIMA F3236 are as follows:
Input signal: 6mA (including cable plug) or mechanical contact 24V.
Switching time: Typical value 8ms.
Working data: 5V DC=120mA, 24V DC=200mA.
Weight: 5 kg.
Processor: Two clock-synchronized microprocessors, each with its own memory.
Comparator: A testable hardware comparator for all external access to both microprocessors.
Flash EPROM: Used by the operating system with user programs, can be used for a minimum of 100,000 write cycles.
Data store: Data store in SRAM.
Interface: Two electrically isolated RS485 interfaces with a maximum transmission rate of 57600bps.
In addition, the HIMA F3236 has diagnostic display, dual-port RAM, clock, backup battery and other features.
