Description

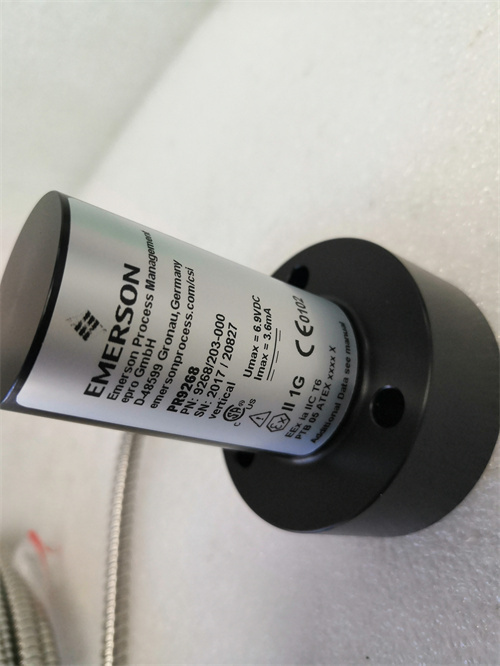

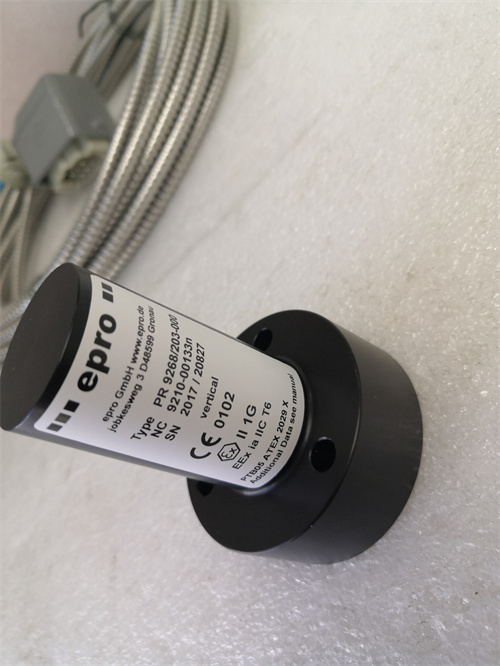

Epro pr9268/203-000 – is characterized by small dimensions, high reliability, and necessary for many applications non-contact measurement.
Parameters and specifications:
Type: vortex sensor.
Make: epro.
Model: pr9268/203-000.
Overall dimensions: 4.4cm x 10.8cm x 12.7cm.
Weight: 0.2kg.
Material: Germany.
Physical values to be measured:
Between the rotating and stationary parts.
Vibrations of the axis.
Axis eccentricity.
Radial and axial axles.
Wear and tear.
Thickness of oil film.
Relative thermal expansion of the shaft and bearing.
Thermal expansion of the bearing.
Position of the valve.
Compliance with standards: API 670, din 45670, iso 10817-1.
Operating under extreme conditions: with the possibility to install safe barriers, the sensor and the preoperator can operate in explosive environments, comply with European standards en 50014/50020.
Working principle:
Sensor expands epro pr9268/203-000 and preoperator form oscillator. The oscillation amplitude decreases as the sensor probe draws closer to a metal measurable object.
Areas of application:
Epro pr9268/203-000 is widely used in various industries, including but not limited to chemicals, biotechnology, energy, electronics, and monitoring and control.
