Description
Parameters and specifications:
Measuring range: Frequency range 10 HZ-1000 Hz and 4 HZ-1000 Hz mechanical vibration.
Maximum amplitude: up to 2mm to 3mm (peak-to-peak).
Output signal: provides a voltage signal proportional to the vibration speed.
Operating temperature: up to 200℃.
Sensitivity: There are three different sensitivities, depending on the type of amplifier being measured.
Anti-interference: The high output and low impedance of the measurement coil make the sensor have strong anti-interference.
Series:

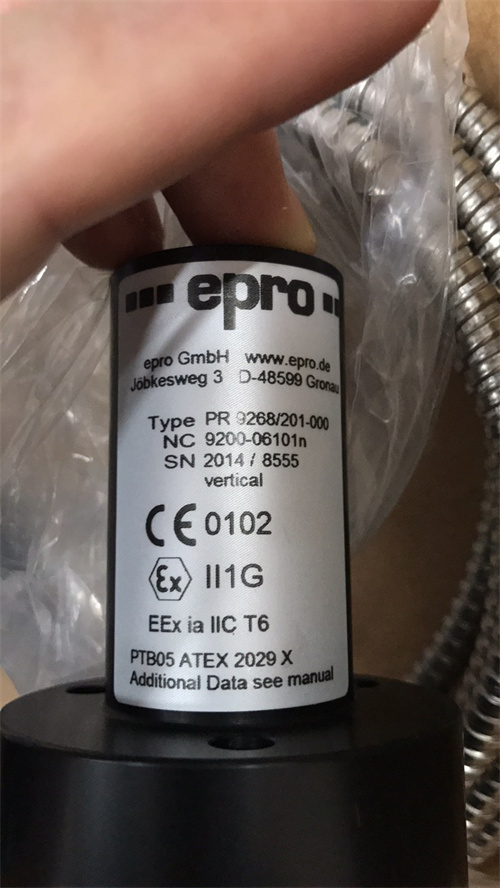

EPRO vibration sensor series, especially the PR9268/201-000 model.
Features:
Robust construction: allows installation in hazardous environments.
Waterproof protection: IP 55 or IP 65.
Explosion-proof class: Connection safety gate (zone 1) explosion-proof class EEx ib II B/II C.
Easy to install: has a simple installation process.
High sensitivity: Accurate vibration measurement.
Functions:
It is mainly used to measure the absolute vibration of various machinery, such as turbomachinery, fans, compressors, gear boxes, water pumps, coal ladders, etc.
It is also suitable for high temperature environments, especially the PR 9268/60 and PR 9268/70 models.
Provides key vibration information to help operators and maintenance personnel better understand the operating status of the equipment and prevent faults and damage caused by excessive vibration.
