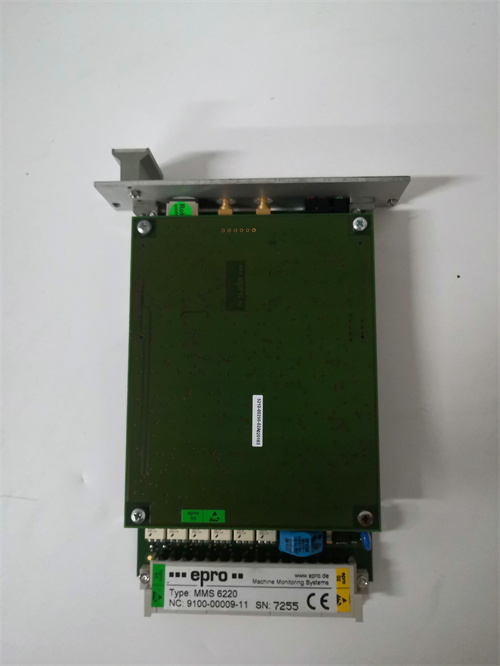

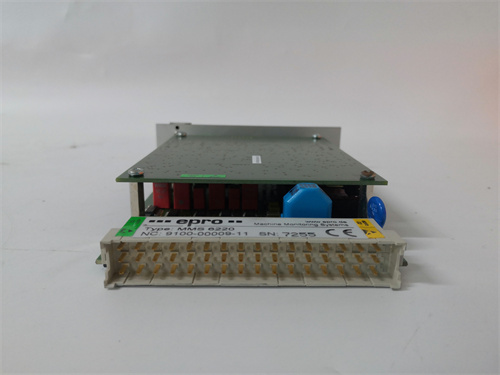

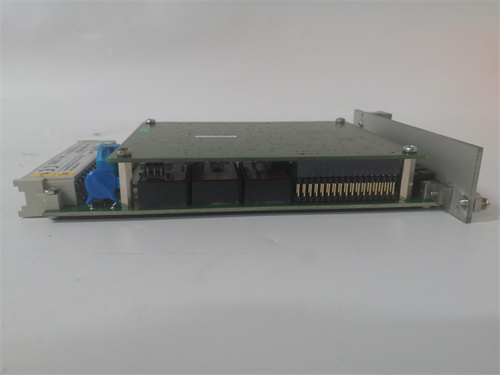

EPRO MMS6220

Description

EPRO MMS6220

Product Parameters

• Power Supply:
  • Input Voltage: Typically operates on 24 VDC, with a tolerance of ±10%.
• Input Signals:
  • Accepts vibration signals from proximity probes or accelerometers.
  • Signal Range: Depending on the sensor type, it can handle a wide range of vibration amplitudes.
• Output Signals:
  • Analog Outputs: Provides 4 – 20 mA analog output signals for connection to control systems or recorders.
  • Digital Outputs: May include relay outputs for alarm and trip functions.
• Communication Interfaces:
  • RS – 485 interface for serial communication, supporting protocols like Modbus RTU.
• Compatibility:
  • Compatible with EPRO MMS series modules and various types of vibration sensors.
• Operating Temperature Range:
  • -20 °C to 60 °C.
• Humidity Range:
  • 5% to 95% (non – condensing).

Advantages and Characteristics

• High Accuracy: In a power generation plant, the EPRO MMS6220 was used to monitor the vibration of a large steam turbine. It was able to measure the vibration amplitude with an accuracy of ±0.01 mils. This high level of accuracy allowed operators to detect even the slightest changes in the turbine’s vibration, enabling early detection of potential issues such as imbalance or misalignment. As a result, the plant was able to schedule maintenance proactively, reducing the risk of unexpected breakdowns and saving significant costs associated with unplanned downtime.
• Reliability: The EPRO MMS6220 is built with high – quality components and has a rugged design. In a continuous operation environment in a manufacturing factory, it has been running stably for over 5 years without any major failures. Its built – in self – diagnostic functions continuously monitor its own operation, and in case of any internal faults, it can send out alarm signals immediately, ensuring the reliability of the machinery protection system.
• Easy Integration: In an industrial automation upgrade project in a petrochemical plant, the EPRO MMS6220 was easily integrated into the existing EPRO machinery protection system. Thanks to its standard communication interfaces and compatibility with other modules, the integration process was completed quickly, without the need for extensive modifications to the existing system. This saved a significant amount of time and effort during the upgrade process.

Application Areas and Application Cases

• Application Areas: The EPRO MMS6220 is widely used in industries such as power generation (steam turbines, generators), oil and gas (compressors, pumps), manufacturing (machine tools, motors), and aerospace (engine monitoring). It is applicable in scenarios where the reliable operation of rotating machinery is critical, and early detection of mechanical failures is essential.
• Application Case: In an oil refinery, the EPRO MMS6220 was installed on a large compressor. The module continuously monitored the vibration of the compressor, providing real – time data on its operating condition. One day, it detected a sudden increase in the vibration amplitude, which indicated a potential issue with the compressor’s bearings. The early warning provided by the EPRO MMS6220 allowed the maintenance team to take immediate action. They were able to replace the bearings before the problem escalated, preventing a major breakdown of the compressor and ensuring the continuous operation of the refinery’s production process.

Comparison with Similar Products

Selection Suggestions

• Compatibility: When selecting the EPRO MMS6220, ensure that it is compatible with the type of vibration sensors you plan to use. Also, check its compatibility with the existing machinery protection system or control system in your facility. Compatibility issues can lead to data transfer problems or inaccurate measurements.
• Installation Environment: Consider the operating temperature, humidity, and any potential electromagnetic interference in the installation location. The EPRO MMS6220 is designed to operate within a specific range, and extreme environmental conditions may affect its performance. If necessary, provide appropriate protection or use environmental enclosures.
• Budget: While the EPRO MMS6220 offers high performance and reliability, it’s important to consider your budget. Compare the cost of this module with other similar products, but also factor in the long – term benefits, such as reduced maintenance costs and improved machinery reliability. Look for a balance between cost and performance that meets your specific application needs.

Precautions

• Safety Specifications: Before installation, make sure to turn off all power sources related to the monitoring system to avoid electrical shock. Follow the installation instructions carefully to ensure proper wiring and grounding of the EPRO MMS6220 and the connected sensors. When handling the module, use anti – static wristbands or other anti – static measures to prevent damage to the electronic components.
• Maintenance Suggestions: Regularly check the connection status of the input cables from the sensors to the module. Ensure that the cables are not damaged and are securely connected. Periodically perform calibration of the module to maintain its measurement accuracy. Monitor the operating temperature and humidity of the installation environment to ensure they are within the specified range. If any abnormal behavior is detected, such as error messages or inconsistent vibration data, stop using the module immediately and contact a qualified technician for troubleshooting and repair.
