Description
Parameters and specifications:
Technical parameters: with open and short circuit protection, as well as reverse protection. Output voltage linear range: -4V to -20V (supply voltage is -24V). Maximum output voltage range: -1V to -22V. Internal resistance: 100k. Response time: 15 (or ≤10s, depending on the source).
Accuracy: The linear error varies depending on the type of sensor connected, such as ≤1.5% when connected to PR6422, ≤6.0% when connected to PR6426, etc.
Stability: temperature drift 0.200mV /100K, sensitivity <2%/100K; Maximum time drift 0.3%; The error of supply voltage is <0.2%/V.
Size and weight:
Size: PCB/EURO card format, according to DIN 41494 (width: 30.0 mm, height: 128.4 mm, length: 160.0 mm).
Weight: About 320 grams net (or about 200 grams, depending on the source).
Series:

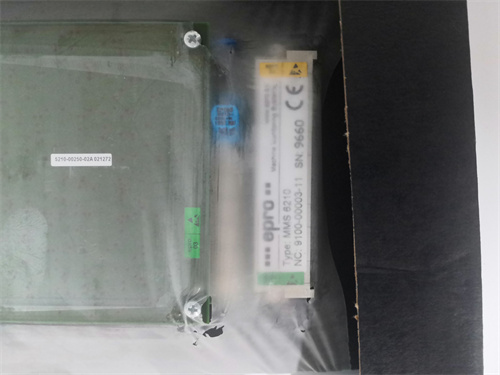

The MMS6210 is a model in the EPRO Turbine Monitoring System TSI.
Features:
High reliability: suitable for harsh industrial environments, the average time between failures is long, and the fault repair time is short.
Flexible connection: The sensor can be connected via LEMO plug or screw terminal.
Configuration Settings: The EPRO display module can configure the configuration of the connected MMS6000 module through the MMS6210.
Alarm blocking: The alarm output can be blocked in case of module failure, external blocking or channel failure.
Condition monitoring: The module continuously checks the measurement loop, gives an indication when a fault is found, and locks the alarm output if necessary.
Functions:
EPRO MMS6210 is mainly used for steam turbine shaft displacement monitoring, as well as industrial environment air quality monitoring, mine safety environment monitoring, printing and dyeing plants, chemical plants and other harmful gas emission monitoring fields.
