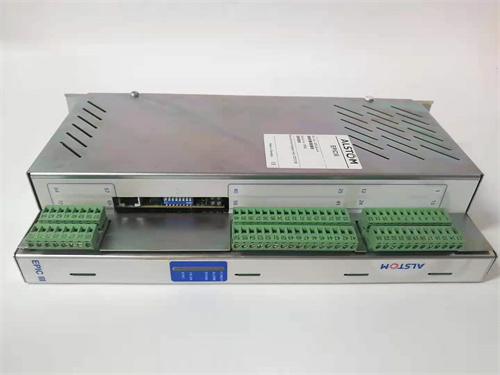

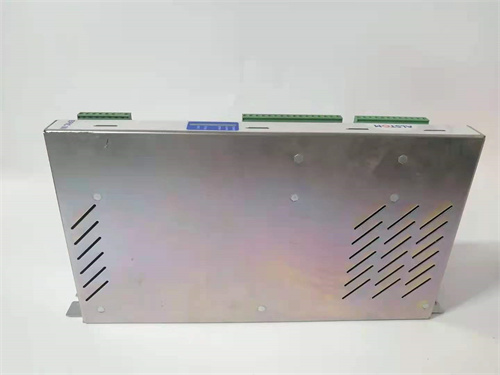

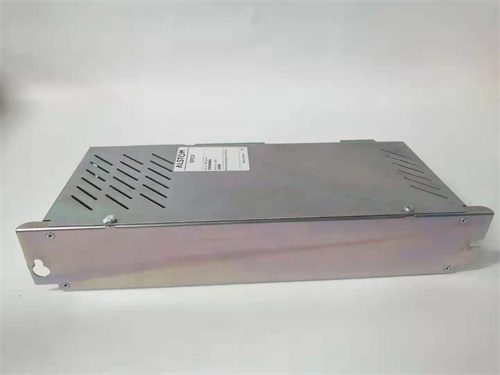

EP3-E-4-A

Description

2. Size and weight
Size: For the power module of EP3-E-4-A as the dust removal controller, the dimensions are 200 mm x 120 mm x 60 mm and the weight is 1.5 kg. Note, however, that if the EP3-E-4-A is another type of device, such as a stepper drive or control module, its size and weight may vary.
Weight: For the power module version of the dust collector controller, the weight is 1.5 kg.
3. Series
​
EP3-E-4-A may be part of the product family of several manufacturers, including MOTEC and ALSTOM. MOTEC’s version is an intelligent three-phase hybrid stepper driver, while ALSTOM’s version may be a power module or control module for an electric dust collector.

1. Parameters and specifications
Input DC power: 18VDC to 80VDC.
Output phase current: 0 ~ 8A.
Applicable motor: three-phase hybrid stepper motor (such as SM3 series, 0.4 ~ 6Nm).
Control mode: Support position control mode and speed control mode.
Operation mode: including network command mode, pulse/direction mode, analog signal mode, independent operation mode and double pulse mode.
Communication protocol: Integrated standard MODBUS protocol, support standard CANOPEN protocol.
