Description
Product Description

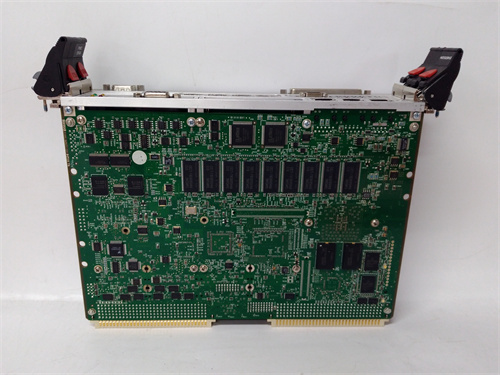

The EMERSON PMCSPAN is a single – slot, 6U VMEbus module designed to expand the I/O capabilities of VME – based CPU modules, especially those from Emerson Network Power1. It provides space for either two single – wide or one double – wide PCI Mezzanine Card (PMC) per module1. The module links to the host board via a PCI expansion connector, enabling communication between the PMC cards and the main system through the PCI bus1. Additionally, multiple PMCSPAN modules can be stacked to add more PMC slots to a single VME system1. It offers front panel and P2 I/O access, facilitating easy access to the I/O functionalities of the installed PMC modules1. This module is suitable for a variety of applications where VME – based systems need enhanced I/O capabilities, such as in industrial automation control systems. Its advantages include high reliability, easy integration, and the ability to meet the complex I/O requirements of different systems.
Product Parameters
- Voltage: 24 V DC (19 V…31.2 V)4.
- Current: Not specified in the available data.
- Interface Type: PCI expansion connector for connection to the host board, and P2 connector on the VMEbus backplane for I/O access1.
- Compatibility: Compatible with VME – based CPU modules from Emerson Network Power and supports standard PMC cards.
Advantages and Characteristics
The EMERSON PMCSPAN stands out for its high reliability. It uses high – quality components and advanced manufacturing processes to ensure stable operation in harsh industrial environments. For example, in a chemical processing plant, the module has been operating continuously for several years with no failures, demonstrating its excellent reliability. It is also easy to integrate. With its standard PCI interface and modular design, it can be quickly and easily installed into existing VME – based systems, reducing installation and commissioning time. Moreover, the module is energy – efficient, consuming relatively low power while providing powerful I/O expansion capabilities, which helps save energy costs in large – scale industrial applications.
Application Areas and Application Cases
The EMERSON PMCSPAN is widely used in industries such as oil and gas, power generation, chemical processing, manufacturing, pulp and paper, and more1. For example, in an oil and gas offshore platform project, the platform has strict space and weight restrictions, and at the same time, it requires a large number of complex I/O interfaces. The PMCSPAN module, together with Emerson’s Delta V™ electronic marshalling with CHARMs technology and field – mounted junction boxes, successfully meets the platform’s constraints and ensures the normal operation of the automation control system on the platform5. This solution not only saves costs but also improves the reliability and efficiency of the entire system.
Comparison with Competitors
Compared with similar products in the market, the EMERSON PMCSPAN has unique advantages in terms of reliability, integration, and energy efficiency. It has a more stable performance in harsh environments, a more convenient installation and integration method, and better energy – saving effects. These advantages enable it to provide better solutions for users in different application scenarios, helping users improve the performance and efficiency of their systems while reducing operating costs.
Selection Suggestions
When selecting the EMERSON PMCSPAN, first consider the compatibility with your existing VME – based system. Make sure that the module is compatible with your CPU module and other peripheral devices. Also, consider the installation environment. Ensure that the installation location has enough space and a suitable temperature and humidity environment to ensure the normal operation of the module. In terms of budget, although the PMCSPAN may have a certain cost, its high reliability and performance can bring long – term benefits, so a reasonable budget should be allocated according to the actual needs of the project.
Precautions
During installation, follow the installation instructions carefully. When connecting the module to the host board and other devices, make sure that the connection is firm to avoid poor contact. During use, regularly check the operating status of the module, including the temperature, voltage, and other parameters, to ensure that it is operating within the normal range. In addition, perform regular maintenance and cleaning to keep the module in good condition and extend its service life.
Shanxi Runsheng Import and Export Co., Ltd. is your reliable partner. We provide sales and technical support for EMERSON PMCSPAN and other automation spare parts. Please visit our website www.sxrsrobot.com or contact us, and we will be happy to serve you.
