Description
Parameters and specifications:
Operating voltage: 220V (24V mentioned in some information).
Output frequency: 100kHz (some information not mentioned).
Communication interface: HDMI interface (some information is not mentioned).
Size and weight:
Size:
PCB/EURO card format, conforming to DIN 41494,100 x 160 mm (3.937 x 6.300 in).
Width: 30.0 mm (1.181 in) (6 TE).
Height: 128.4 mm (5.055 in) (3 HE).
Length: 160.0 mm (6.300 in).
Weight:
Net weight: Approximately 320 g (0.705 lb).
Gross weight: approximately 450 g (0.992 lb).
Series:
The product is not explicitly labeled as a specific family, but is generally considered to be part of EMERSON’s EPRO family or a related industrial automation product line.
Features:
Design: Two-channel, 3U size, 1-slot plug-in module, compared with the traditional four-channel 6U card, the cabinet space requirement is reduced by half.
Compatibility: Hot-swappable modules that comply with API 670 standards.
Security: Password protected user configuration.
Self-test function: includes monitoring hardware, power input, hardware temperature, sensors, and cables.
Output: Front and rear buffered and proportional output, 0/4-20 mA output, 0-10 V output.
Compatible sensor: Compatible with inductive displacement sensor 9350.
Functions:

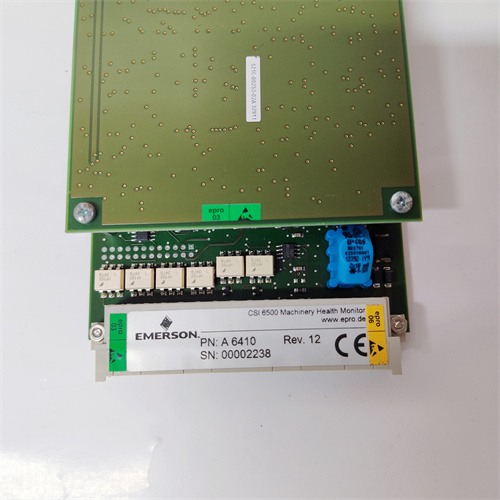

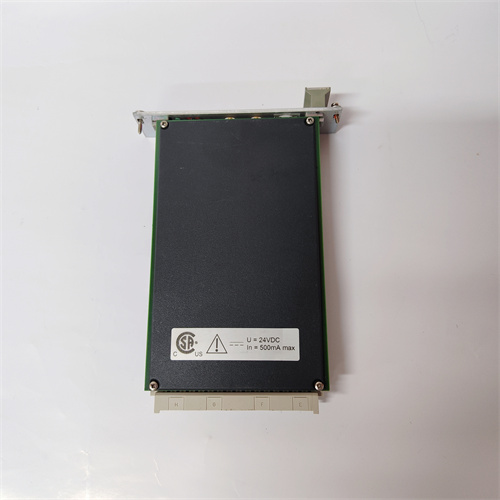

The EMERSON A6410 valve and housing expansion monitor is primarily used in the AMS6500 mechanical health monitor. It is a highly reliable device designed for the most critical rotating machinery in the plant.
The main function is to accurately monitor valve position and housing expansion and reliably protect machinery by comparing parameters with alarm set points.
Applications include steam, gas, compressors and hydraulic turbomachinery.
