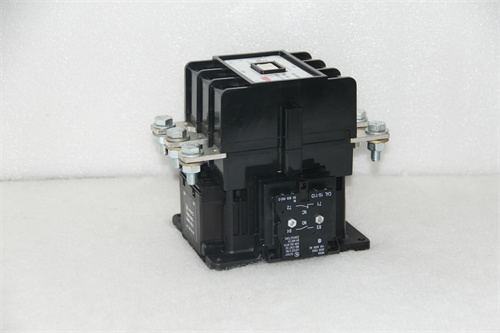

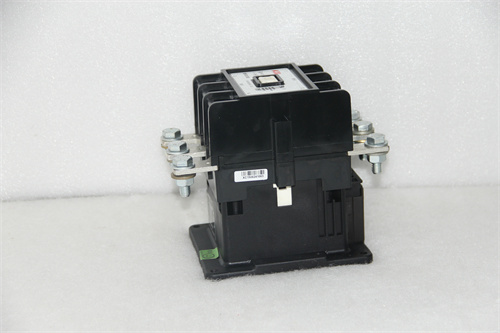

EHDB280

Description

argument
Input current: 500mA
Output voltage: 24VDC
Output power: 360W
Input voltage range: 85~264VAC
specification
Number of channels: 16
Operating temperature range: -25~70℃
Storage temperature range: -40 ℃ to 85℃
Power supply: Support 115-220V interface and quantity of original factory standard, support Hot-Plug
Power supply and protection: dual power supply redundant input, DC(9-36)V, typical DC24V, power consumption less than 4W, with DC1500V voltage isolation and reverse protection function
Size and weight
Product size: 10 x 7.6 x 1.2 inches (approximately 254 x 193 x 30.5 mm)
Product weight: Approx. 1.2kg (another source points to 2KG, but may be a different model or configuration of the EHDB280)
series
The EHDB280 is an industrial control module model from ABB and belongs to ABB’s industrial automation product line.
trait
Industrial grade design: lightning protection, overcurrent and surge protection, as well as EMC test certification
Communication function: Support the scheduled communication rate in the standard specification, support the dip switch to manually set all its standard rate or rate adaptive
Protection grade: IP30 protection grade, using wavy aluminum reinforced housing, industrial terminal interface
Installation method: Support standard industrial 35mm rail installation method
effect
The EHDB280 is ABB’s industrial control module, mainly used for control and monitoring tasks in industrial automation systems. It supports a variety of industrial automation applications, such as the control of wind turbines, hazardous area motors, synchronous motors, servo motors and servo drives.
In ABB’s automation control DCS system, EHDB280, as a CPU module, can realize the control, monitoring and optimization functions of the system to help users improve production efficiency and energy efficiency.
