Description
Parameters and specifications:

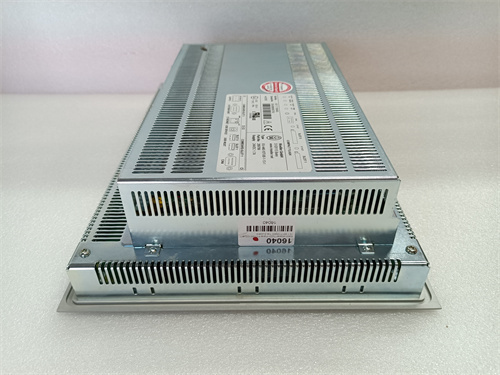

Brand: EATON
Model: XV-440-10TVB-1-10
Type: Touch screen
Material: iron and aluminum
Specifications: 350MM250MM450MM
Power: 120KW (there may be some discrepancy here, because the touch screen usually does not use so much power, may refer to the system or device associated with it)
Rated voltage: 24VDC
Display size: 9.7 inches (note that this is different from the 10.4 inches of the XV-440-10TVB-1-13-1)
Display resolution: not directly mentioned, but probably similar to 320 x 240 pixels of XV-102-A0-35TQRB-1E4
Touch type: Full screen control
Color: Silver
Function: Machine tool control
Application range: 12V-240V
Number of ports: 2
Port type: Ethernet, RS485
Processor speed: 400MHz (may vary from model to model)
Onboard memory: 125 (NVRAM) KB, 64 (DRAM) MB, 64 (NAND) MB
Backlight: Yes
Power supply voltage: 24 volts DC
Intellectual property level: IP20, IP65
Depth: 30mm (may vary from model to model)
Width: 100mm
Length: 136mm
Size and weight:
Size: as shown in specifications, 350MM250MM450MM
Weight: about 2KG (according to the information provided by Zhangzhou Fengyun Electrical Equipment Co., LTD.)
Series:
Belongs to one of EATON’s touchscreen or controller families, but the specific family name is not explicitly mentioned in the search results.
Features:
Touch screen operation: Provides intuitive full screen control.
Communication interface: Supports Ethernet and RS485 communication.
Protection class: IP20 and IP65, indicating a certain degree of dust and water resistance.
Display technology: May be TFT liquid crystal display technology, but the specific is not directly mentioned.
Functions:
The EATON XV-440-10TVB-1-10 is a touchscreen controller commonly used in industrial automation and control systems such as machine tool control. Through the touch screen, users can easily interact with the system, display items, control devices, set parameters, etc.
