DSPC3122

Description

‌ Make and model ‌

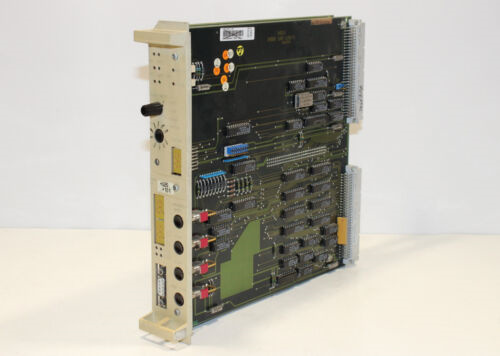

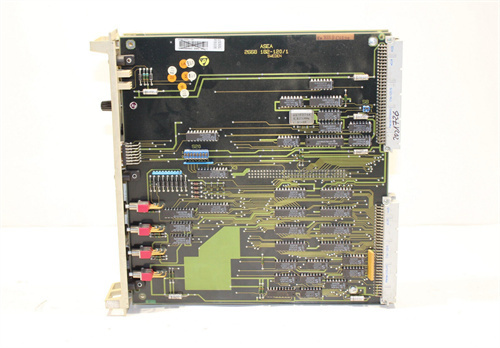

ABB DSPC3122 7650001-62

‌ function ‌ Automatic voltage regulation, suitable for PLC system control
‌ parameter ‌ – Range: 100-204 KP
– Accuracy: 1.0-3.4
– Output frequency range: 0.2 to 400Hz (variable start frequency 0 to 60Hz)
– Frequency setting resolution: 1/500 of the maximum set frequency between analog inputs (DC5V input), 1/1000 (DC10V, DC4 to 20mA input)
– Digital input: 0.01Hz (less than 100Hz), 0.1Hz (more than 100Hz)
– Frequency accuracy: ±0.5% of the maximum output frequency of the analog input (25 ° C ±10 ° C)
– Torque increase: Manual torque increase 0 to 30% can be set

– Acceleration/deceleration time setting: 0.01,0.1 to 3600 seconds (acceleration and deceleration time can be set respectively), can choose linear or S-type acceleration/deceleration form
– Brake torque regeneration: The percentage of regenerative brake torque varies depending on the model and power
Dc braking: Variable operating frequency (0 to 120Hz), operating time (0 to 10sec), operating voltage (0 to 3%)
– Current stall avoid action level: Action current level can be set (0 to 200% variable)
– Input signal: frequency setting signal, analog input, DC 0 to 5V, 0 to 10V, 4 to 20mA
‌ Dimensions ‌ 2002054mm
