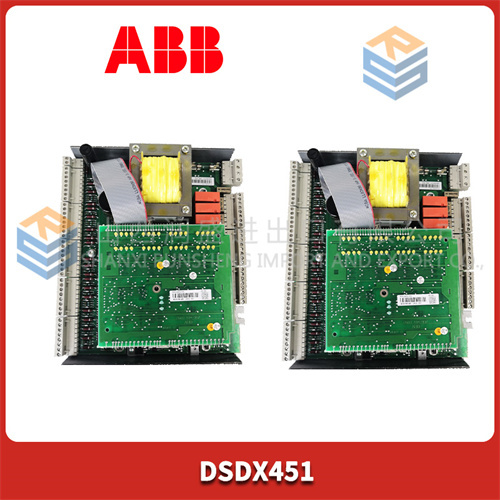

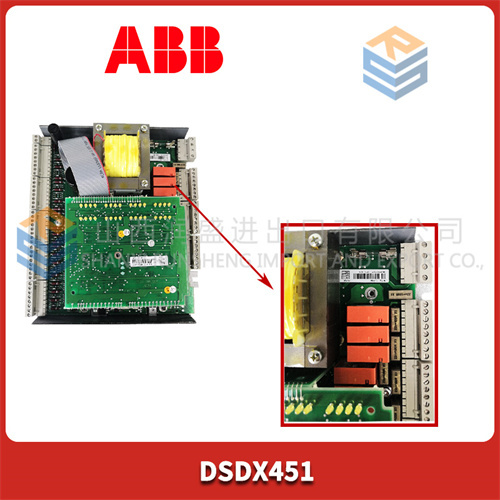

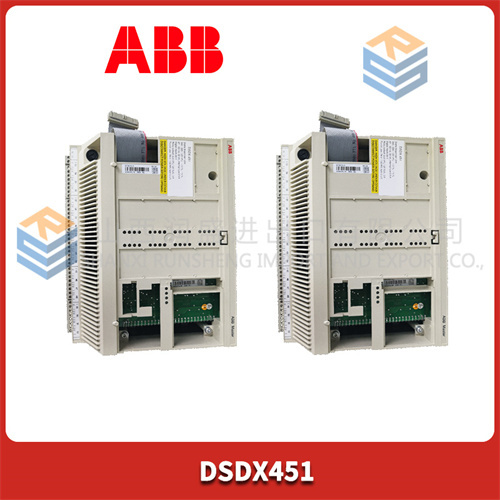

DSDX451

Description

–‌Parameters‌:
–‌Voltage Range‌: Suitable for 24 VDC to 240 VAC/DC12.
–‌Input/Output‌: 20 digital inputs (24 V) and 12 digital outputs12.
–‌Minimum Load‌: 2.5 VA for AC/DC, 100 mA for 24 VDC12.

–‌Specifications‌:
–‌Interface Type‌: PROFIBUS DP3.
–‌PROFIBUS DP Rate‌: 960 kbps, 1.5 Mbps, 3 Mbps3.
–‌Node Address‌: 0 to 313.
–‌Power Supply‌: 24 VDC3.
–‌Power Consumption‌: 5W3.

–‌Dimensions & Weight‌:
–‌Dimensions‌: 110mm x 60mm x 25mm3.
–‌Weight‌: 200 grams

–‌Series‌:

• Belongs to the ABB AC800M I/O system, a modular and scalable I/O system suitable for various industrial applications3.

–‌Characteristics‌:
–‌High Reliability‌: Uses high-quality components and advanced design for stable and reliable operation3.
–‌Configurable‌: Provides software for easy configuration and management of the module3.
–‌Integrated Voltage Source‌: Equipped with an integrated voltage source providing 24V DC for sensor power supply2.

–‌Role‌:
–‌Digital Input/Output Module‌: Acts as a digital input/output module in industrial automation systems, facilitating the acquisition and transmission of digital signals12.
–‌Signal Processing‌: Enables the processing of digital signals from sensors and actuators, allowing for precise control and monitoring of industrial processes12.
–‌PROFIBUS Communication‌: Enables communication with other devices and systems via the PROFIBUS DP interface, facilitating system integration and data exchange
