DSDP140B 57160001-AC

Description

Parameters and Specifications:

Input Voltage: Typically supports 24VDC.
Output Voltage: Also available at 24VDC.
Maximum Output Current: Up to 10A.
Working Temperature Range: -40°C to 70°C.
Sampling Period: 100ms.
Maximum I/O Points: 384.
Communication Protocols: Supports Modbus, Ethernet, and OPC.

Dimensions and Weight:

Dimensions: Measures approximately 120mm x 60mm x 80mm.
Weight: 0.5kg.

Features:

High-Speed Counting Technology: Enables accurate and rapid counting of various pulse signals for high-precision measurements.
Configurable: Users can configure the counting mode, input channel quantity, and other settings through configuration software, adapting to diverse application scenarios.
Industrial-Grade Design: Exhibits excellent stability and reliability, ensuring long-term stable operation in harsh industrial environments.
Easy Integration: Offers multiple communication interfaces, facilitating data exchange and integration with other devices or systems.
Remote Monitoring and Maintenance: Supports remote monitoring and maintenance, reducing maintenance costs and time.

Role and Application:

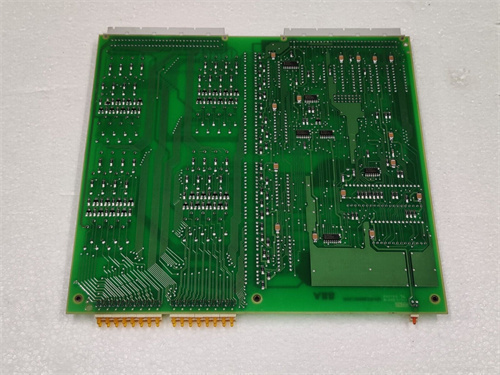

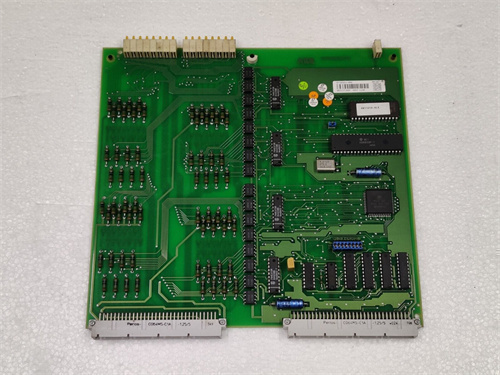

The ABB DSDP140B 57160001-AC pulse counter board module serves as a critical component in industrial automation systems. It is responsible for accurately counting pulses, processing signals, and controlling operations.
Its high-speed counting capabilities and configurable nature make it suitable for various industrial applications, including process control, manufacturing, and safety-critical systems.
