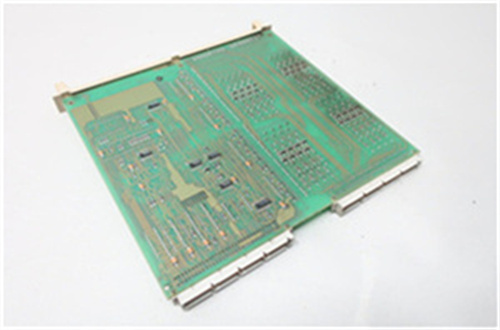

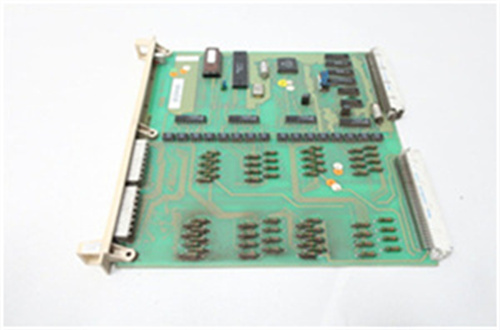

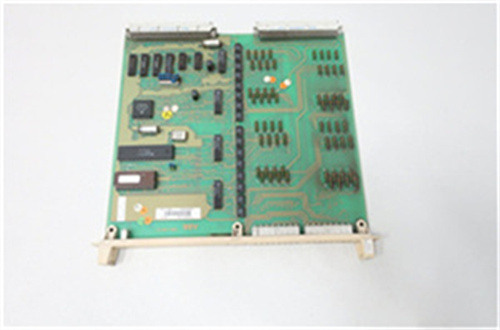

DSDI452

Description

Step 5: Characteristics
Multi-channel output: provides 7 channel digital output, suitable for a variety of industrial automation application scenarios.
Flexible configuration: Supports analog output (optional per channel), increasing the flexibility and adaptability of the device.
High performance communication: Dual communication port design for easy data exchange and remote control with other devices.
Multi-processor architecture: The multi-processor architecture improves the processing power and stability of the system.

2. Specifications
Digital input: Although the DSDI452 is primarily used as an output module, it is usually used in conjunction with PLC systems that contain digital input, which may be drain/source, rated for DC24V input voltage and 7mA input current.
Architecture: DSDI452 relates to a multi-processor computer hardware and software architecture consisting of two or more identical processors connected to a shared main memory with full access to all input and output devices.
3. Size and weight
Size: Specific size information (such as length, width, height) is not directly given in the provided search results, but usually such information can be found in the product manual or the manufacturer’s technical specification sheet.
Weight: Again, the specific weight is not directly mentioned in the search results, but as a general rule of thumb, the weight of such PLC modules is usually between a few hundred grams and a few kilograms.

1. Parameters
Number and type of output channels: DSDI452 has 7 channels of digital output, the output type is relay output, suitable for AC5~250V/DC5~30V voltage range.
Analog output range: Although the DSDI452 is mainly used as a digital output module, it also supports analog output (only one can be selected per channel), ranging from 0 to 20mA, 4 to 20mA, 0 to 5V and 0 to 10V.
Power supply and power consumption: Rated voltage is AC85~265V, power consumption is 5V/0.55A and 24V/0.2A. There is also information that the DSDI452 has a voltage of 24V and a current range of 100-400A, but this may refer to the voltage and current requirements of the device in a specific application or configuration, rather than its standard power supply parameters.
Communication interface: The module has two communication ports, RS232 and RS485 respectively.
