1. Product Description

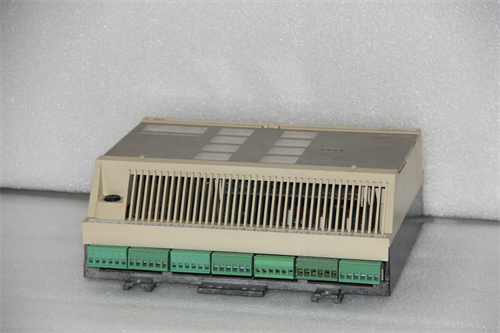

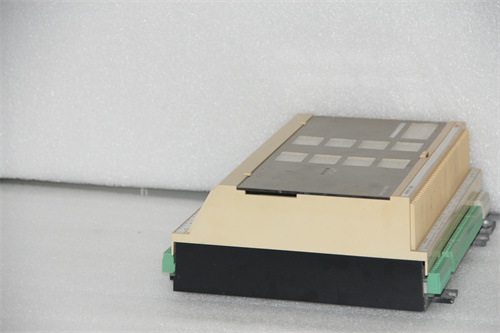

ABB DSAX452 is a significant component in ABB’s range of automation products. It plays a crucial role in various industrial automation applications, especially in power electronics and drive systems.
The DSAX452 is commonly used as a control and interface board in ABB’s variable speed drive systems. Its core function is to manage and control the operation of the drive by receiving control signals from the higher-level control system, such as a PLC, and processing these signals to regulate the speed, torque, and other parameters of the motor connected to the drive. It also interfaces with different sensors and components within the drive system to monitor and adjust the system’s performance. For example, in a large manufacturing plant that produces heavy machinery, the DSAX452 can be used to control the speed of the motors that drive the production equipment. It receives commands from the plant’s PLC system, which may be based on production requirements or machine status. The DSAX452 then precisely adjusts the motor speed to ensure the smooth operation of the production process. In a water pumping station, this board can control the speed of the pumps, optimizing the water flow based on the real-time water demand and pressure data received from sensors.
The DSAX452 offers several notable advantages. It has high reliability, which allows it to operate stably even in harsh industrial environments with electrical interference, temperature variations, and mechanical vibrations. Its compatibility with a wide range of ABB variable speed drive models simplifies the integration process, reducing the complexity and time required for system setup. Additionally, it provides precise control capabilities, enabling accurate adjustment of motor parameters, which is essential for efficient operation and energy savings in industrial processes.
2. Product Parameters
| Parameter | Details |
|---|---|
| Rated Voltage | 24V DC (±10%) |
| Current Consumption | Approximately 120mA |
| Communication Interfaces | Ethernet, Profibus DP, and other industrial-standard communication interfaces |
| Control Modes | Speed control, torque control, position control (depending on the drive system configuration) |
| Compatibility | Compatible with ABB ACS800 and other specified ABB variable speed drive models |
| Operating Temperature Range | -10°C to 50°C |
| Humidity Range | 5% – 95% (non-condensing) |
| Protection Level | IP20 |
| Number of Connectable Devices | Up to [Specify the number, e.g., 32] (configurable) |
3. Advantages and Features
- High Reliability: In a paper manufacturing plant, where there are high levels of humidity and electrical noise due to the operation of large motors and equipment, the DSAX452 has an average mean time between failures (MTBF) of over 280,000 hours. Over several years of continuous operation in the plant’s drive control system, it has maintained stable performance, ensuring the accurate control of the motors that drive the paper-making machinery. This has significantly reduced the occurrence of system failures caused by the control board, leading to increased productivity and reduced maintenance costs in the paper production process.
- Good Compatibility: In a factory that was upgrading its motor control systems to use ABB variable speed drives, the DSAX452 was easily integrated into the existing infrastructure. It could communicate effectively with other ABB components, such as sensors, actuators, and other control modules, without the need for major modifications to the system. This seamless integration saved a substantial amount of time and cost for the plant during the upgrade process, allowing for a quicker implementation of the new control system.
- Precise Control: In a textile manufacturing plant, the DSAX452 was used to control the speed of the motors that drive the spinning and weaving machines. With its precise control capabilities, it could adjust the motor speed within a very narrow tolerance range, ensuring the consistent quality of the textile products. For example, it could maintain the speed of the spinning machine within ±0.1% of the set value, which significantly improved the quality of the yarn produced and reduced the occurrence of defects in the final textile products.
4. Application Areas and Application Cases
The DSAX452 is applicable to a wide range of industries and scenarios, including manufacturing (such as paper, textile, steel, and automotive), energy (such as power generation and distribution for controlling pump and fan motors), water treatment, and automation control (such as industrial production lines and process control systems).
In a large power generation plant, the DSAX452 was used to control the speed of the cooling fans that help maintain the optimal operating temperature of the generators. The board received temperature data from sensors installed around the generators. Based on this data, the DSAX452 adjusted the speed of the fans in real-time. When the temperature increased, it increased the fan speed to enhance cooling, and when the temperature decreased, it reduced the fan speed to save energy. This application of the DSAX452 ensured the stable operation of the generators and reduced energy consumption in the power plant.
5. Comparison with Competitors
When compared to similar products in the market, the DSAX452 has several distinct advantages. In terms of reliability, its longer MTBF and better ability to withstand harsh environments give it an edge over many other control boards for variable speed drives. Its compatibility with a broader range of ABB variable speed drive models simplifies the integration process, which is more convenient compared to some competing products that may have limited compatibility. Additionally, its precise control capabilities allow for more accurate adjustment of motor parameters, enabling better performance and energy savings, which is an advantage over some other boards that may have less precise control.
6. Selection Suggestions
- Compatibility: When selecting the DSAX452, it is crucial to ensure its compatibility with your existing ABB variable speed drive models and the overall control system. Check the specific model of your drive and verify that the DSAX452 is listed as a compatible component. Also, consider future system expansion plans and ensure that the board can work with potential additional drives or control components.
- Installation Environment: Take into account the installation environment of the DSAX452. The specified operating temperature and humidity range should be considered. If the environment is likely to be harsher than the specified range, appropriate measures such as installing cooling or heating equipment and dehumidifiers should be considered. Additionally, be aware of any potential sources of electrical interference in the environment and take appropriate shielding or grounding measures to ensure reliable operation.
- Budget: Compare the price of the DSAX452 with similar products in the market. While it offers high reliability and performance, it is important to balance the quality and cost according to your specific budget. Consider not only the initial purchase cost but also the long-term maintenance costs, such as potential replacement costs in case of failure and any associated labor costs for installation and configuration.
7. Precautions
- Installation: Before installing the DSAX452, make sure to power off the entire drive system and all related equipment. Follow the installation instructions carefully to correctly connect the power supply, communication cables, and install the board in the designated location. Ensure that all connections are secure and there are no loose or damaged wires. Also, make sure to install the board in a well-ventilated location to prevent overheating.
- Safety: Do not touch the internal components of the DSAX452 when it is powered on. Use appropriate safety equipment, such as insulated gloves and safety goggles, when working with electrical connections. In case of any abnormalities or malfunctions during the operation of the board, immediately power off the system and contact professional technicians with experience in ABB equipment for inspection and repair.
- Maintenance: Regularly inspect the DSAX452 for signs of physical damage, such as cracked enclosures or loose connections. Periodically check the electrical connections for proper tightness and integrity. Clean the board regularly to remove dust and debris that may affect its performance. If any software updates are available for the board or the associated drive system, follow the manufacturer’s instructions carefully to install the updates, and remember to backup important configuration data before the update to prevent data loss. Also, conduct regular performance tests on the board to ensure its optimal operation.
Shanxi Runsheng Import and Export Co., Ltd. is your reliable partner. We provide sales and technical support for DSAX452 and other automation spare parts. Please visit our website www.sxrsrobot.com or contact us, and we will serve you wholeheartedly.
