Description
Parameters and specifications:
Brand: ABB

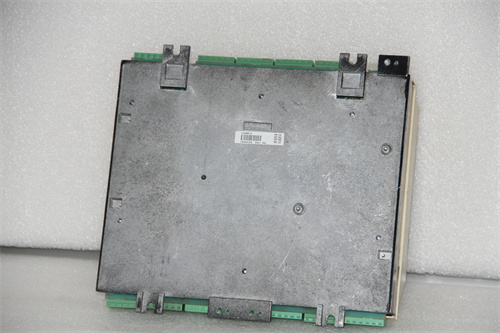

Model: DSAX-452
Output characteristics: output points are 4, 8, 16 options; The output type is relay output
Output voltage: rated load voltage 24V DC, allowable voltage range 20.4 ~ 28.8V DC
Signal voltage: Minimum 20V DC for signal 1, 0.1V DC for signal 0 (10K ohm load)
Output current: The current of signal 1 is 0.5A (depending on the number of output points, the number of output groups and each group of currents are different)
Output delay: 50 subtle for OFF – on, 200 subtle for off – on
Cable length: 150 meters when unshielded, 500 meters when shielded
5V DC current consumption: Depending on the configuration, the current consumption is between 54 mA and 173 mA
Size and weight:
Size: The specification size is marked as DSAX452mm,
Series:
The DSAX-452 is a specific family of digital volume expansion modules under the ABB brand.
Features:
Scalability: The number of PLC input/output points can be easily expanded
Isolation: with optocoupler isolation function, the isolation voltage is 500V AC, the duration is less than 1 minute
Easy to program: The A7 series CPU unit can be programmed directly using a range of software
High performance: The product can meet higher requirements, such as flexible control principle and high precision
Functions:
DSAX-452 is a digital quantity expansion module, mainly used in industrial automation systems, to expand the input/output points of PLC, improve the control ability and flexibility of the system. It can receive signals from sensors and control the actions of actuators (such as motors, valves, etc.) to achieve automatic control.
