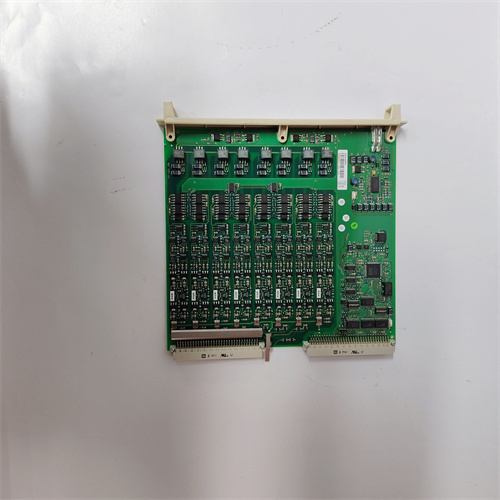

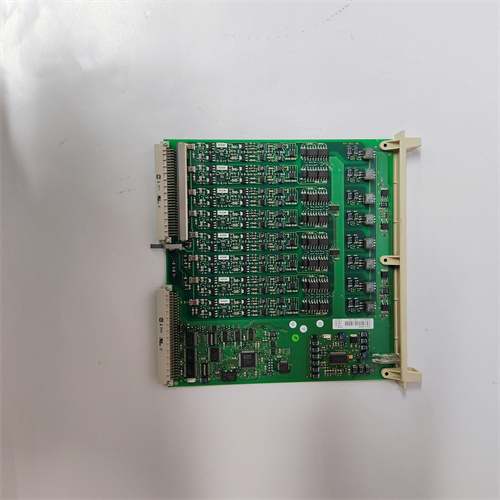

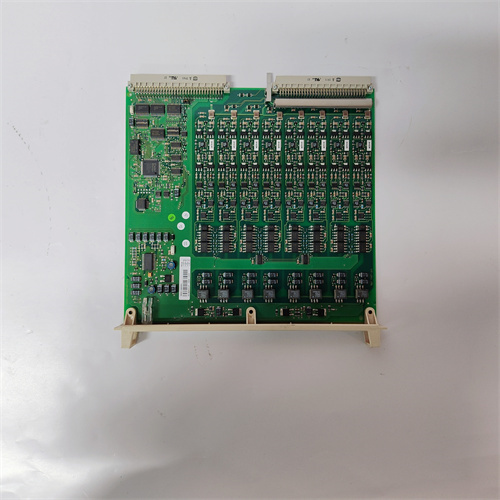

DSAO120A 3BSE018293R1

Description

Product Parameters:

Model: DSAO120A
Part Number: 3BSE018293R1
Type: Digital Output Module
Compatibility: Compatible with ABB Advant Controller 400 Series
Number of Outputs: 16
Output Type: Digital (Relay or Transistor)
Voltage Rating: Depends on the specific configuration (typically 24V DC)
Current Rating: Depends on the specific configuration (typically up to 2A per output)
Isolation: Optically isolated outputs for enhanced reliability and safety
Communication Interface: Connects to the controller via the Advant Fieldbus 100 (AF100) communication protocol
Mounting: DIN rail mountable for easy installation in control cabinets
Status Indication: LED indicators for each output channel for easy diagnostics

DSAO120A 3BSE018293R1

DSAO120A 3BSE018293R1

DSAO120A 3BSE018293R1

Specifications:

Operating Temperature: -25°C to +70°C (-13°F to +158°F)
Storage Temperature: -40°C to +85°C (-40°F to +185°F)
Humidity: 5% to 95% RH (non-condensing)
Shock Resistance: 30g, 11ms, half-sine shock
Vibration Resistance: 1.5g, 10 to 150Hz, 0.15mm displacement
Dimensions (H x W x D): Approx. 100mm x 40mm x 115mm (3.94 x 1.57 x 4.53)
Weight: Approx. 0.5 kg (1.1 lbs)
