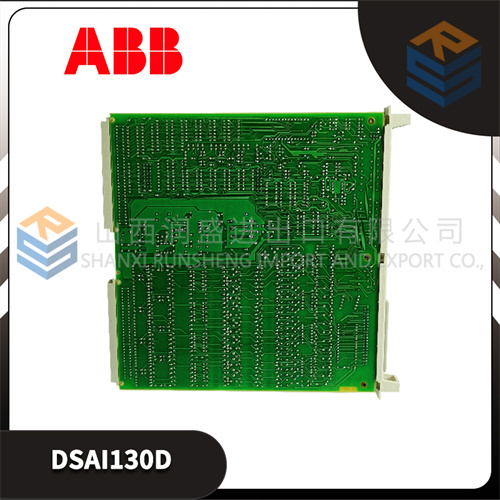

DSAI130D

Description

1.‌Parameters and Specifications‌:
–‌Input Channels‌: 161
–‌Resolution‌: 12 bits1
–‌Input Range‌: ±76.5 mV1
–‌Input Impedance‌: 2 MΩ1
–‌Sampling Rates‌: 250 Hz, 500 Hz, 1 kHz, 2 kHz, 4 kHz, 8 kHz, 16 kHz, 32 kHz1
–‌Filtering Times‌: 0.2 seconds, 0.5 seconds, 1 second, 2 seconds, 5 seconds, 10 seconds, 20 seconds1

2.‌Dimensions and Weight‌:
–‌Dimensions‌: 87 mm x 46 mm x 23 mm1
–‌Weight‌: 0.14 kg

3.‌Series‌:

• DSAI130D belongs to ABB’s S series of I/O modules, known for their compact design, high performance, and ease of use1.

4.‌Features‌:
–‌High Accuracy‌: With 12-bit resolution, it provides high measurement accuracy1.
–‌Multiple Sampling Rates and Filtering Times‌: Supports a wide range of sampling rates and filtering times to suit various application requirements1.
–‌Compact Design‌: Its small size saves space in industrial control cabinets1.
–‌Easy to Use‌: Easy installation and maintenance reduce operational costs12.
–‌Robustness‌: IP65 protection rating ensures reliable operation in harsh environments1.

5.‌Functions‌:
–‌Analog Signal Conversion‌: Converts various analog signals into digital signals for processing by PLCs or other control systems12.
–‌Industrial Automation‌: Used in industrial automation systems for monitoring and controlling processes
