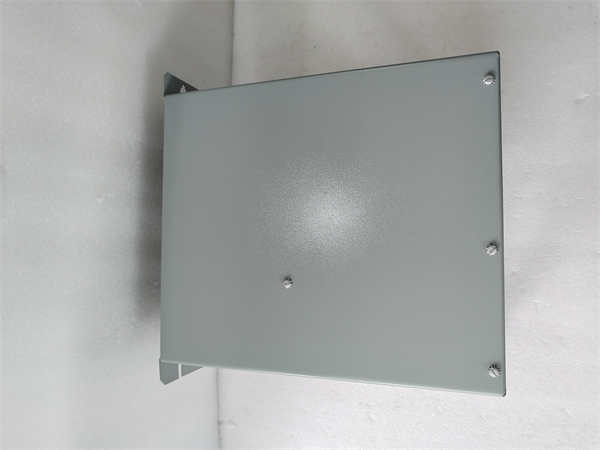

DS3820PSCB1C1B

Description

Characteristic and function

Multi-function control module: DS3820PSCB1C1B is usually used as a multi-function control module in industrial automation systems, which can perform various control tasks
Communication capability: The module is able to communicate with the controller and I/O modules via IONet 2 for fast data transmission and processing.
Redundancy configuration: Supports non-redundancy, dual-redundancy, and triple-redundancy configurations to improve system reliability and stability
Wide range of applications: can be used in industrial control, communication equipment, medical equipment and other application scenarios
Debugging and inspection: In the debugging process, it is necessary to work with the design, process representatives and project management personnel to complete, through the simulation of the interlocking process conditions, carefully check the correctness of the interlocking action, and make debugging records and countersign confirmation

argument

Input voltage: 90-132VAC or 180-264VAC
Input frequency: 47-63Hz
Efficiency: >80%
Ripple and noise: +5V:<2mVrms, +15V:<1mVrms, -15V:<1mVrms
Protection function: over voltage protection, over current protection, short circuit protection, over temperature protection

specification

Dimensions: 216mm x 102mm x 41mm (L x W x H)
Weight:
1.2kg (one possible weight)
0.8 kg
Operating temperature: 0°C to 50°C
Storage temperature: -40°C to 70°C
