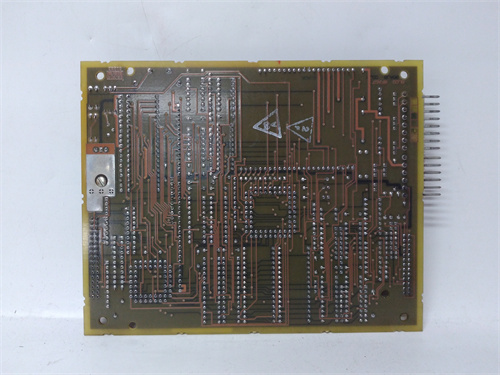

DS200SLCCG1AFG

Description

DS200SLCCG1AFG

1. Technical Specifications

• Power Supply:
  • The DS200SLCCG1AFG operates on a 125V DC power supply. The power consumption is relatively low, typically around 15 – 20W, ensuring energy – efficient operation.
• Input/Output Configuration:
  • Digital Inputs: It features 32 digital inputs. These inputs are capable of accepting signals from a wide variety of digital sensors, such as proximity sensors, limit switches, and reed switches. They can handle input voltages in the range of 5 – 24V DC.
  • Digital Outputs: There are 16 digital outputs. Each output can drive a load with a maximum current of 2A, making it suitable for controlling high – power relays, solenoids, and other actuators.
  • Analog Inputs: There are 4 analog inputs. They can receive signals in the ranges of 0 – 10V or 4 – 20mA, with a 16 – bit resolution, providing extremely high – precision measurement of analog quantities.
  • Analog Outputs: 2 analog outputs are available, which can output signals in the same ranges as the analog inputs, enabling precise control of analog – based devices.
• Processing Speed:
  • The response time for digital input changes is less than 5ms, and for analog input changes, it is approximately 8ms. This rapid processing speed allows for quick response to system changes.
• Communication Interfaces:
  • It is equipped with an Ethernet interface supporting TCP/IP protocol, facilitating high – speed data transfer and seamless integration into industrial Ethernet networks. It also has an RS – 485 serial port with Modbus RTU support for local communication.

2. Applications

• Industrial Automation:
  • In industrial manufacturing, it can be used to control complex production lines. For example, it can manage the operation of multiple robotic arms, control the flow of materials on conveyor belts, and monitor the status of various machines.
• Power Generation and Distribution:
  • In power plants and substations, it can monitor electrical parameters such as voltage, current, and frequency. It can also control the operation of circuit breakers and other power – distribution equipment.
• Water Treatment Plants:
  • In water treatment facilities, it can control the dosing of chemicals, monitor water quality parameters (such as pH, turbidity), and manage the operation of pumps and valves.

3. Weight and Dimensions

• Weight:
  • The module weighs about 1.3 kg, which is relatively light considering its functionality and is easy to install and handle.
• Dimensions:
  • The overall dimensions are: length – 180mm, width – 140mm, height – 70mm. Its compact size allows for installation in standard electrical cabinets.

DS200SLCCG1AFG

4. Features

• Ultra – High Precision:
  • With a 16 – bit analog input resolution, it can provide extremely accurate measurement of analog signals, which is crucial for applications requiring high – precision control.
• High – Current Outputs:
  • The 2A digital output capacity allows it to directly control high – power devices without the need for additional amplifiers in many cases.
• Flexible Configuration and Communication:
  • It offers flexible configuration options for inputs, outputs, and communication parameters. The dual communication interfaces (Ethernet and RS – 485) provide flexibility in system integration.
• Built – in Diagnostic Function:
  • It has a built – in diagnostic function that can detect and report faults in real – time. This helps maintenance personnel to quickly identify and resolve issues, reducing system downtime.

5. Stability and Reliability

• Robust Construction:
  • The module is housed in a rugged enclosure that provides protection against dust, moisture, and mechanical vibrations. This ensures stable operation in harsh industrial environments.
• Fault – Tolerant Design:
  • It is designed with fault – tolerance mechanisms such as over – current protection, short – circuit protection, and over – voltage protection. These features protect the module from electrical faults and ensure long – term reliability.
• Long – Term Reliability:
  • Through the use of high – quality components and strict quality control during manufacturing, it offers long – term reliable operation, minimizing the need for frequent replacements.

6. Real – world Examples

• Steel Manufacturing Plant:
  • In a steel manufacturing plant, the DS200SLCCG1AFG can control the operation of rolling mills. It monitors the position and speed of the rolls through digital and analog sensors and controls the motors and hydraulic systems to ensure precise rolling of steel sheets.
• Smart Grid Substation:
  • In a smart grid substation, it can monitor the power flow and electrical parameters. It can automatically control the switching of circuit breakers based on real – time data to ensure the stability and safety of the power grid.
