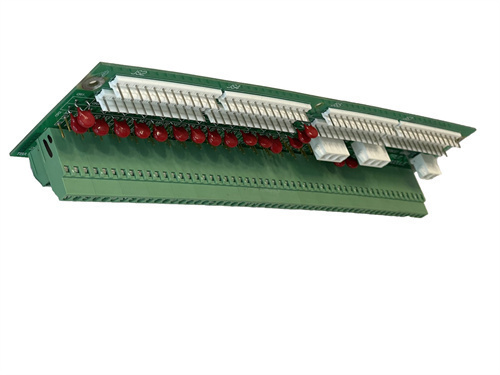

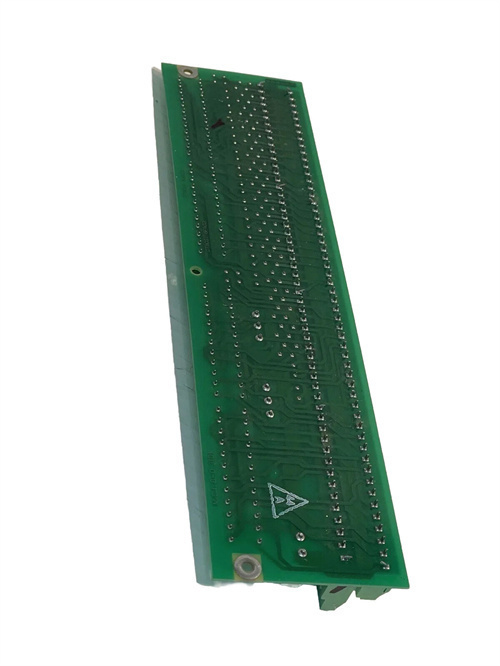

DS200SHVMG1A

Description

series
The DS200SHVMG1A is part of the Mark V series
trait
Multi-group CPU intelligent control: microprocessor-based digital software, can control the UPS parameters and its full control
Advanced IGBT technology and frequency and pulse width modulation (PWM) technology: reduce system noise and power loss to ensure quality voltage output under various workload conditions
Advanced modular design: Lower mean repair time (MTTR), good maintenance
Super intelligent power management humanized indicator panel: composed of a small LCD system, clearly provide the overall condition of UPS operation
Remote monitoring and self-testing function: remote monitoring through RS232 interface, and with system self-testing function, timing switch function, alarm function, etc
Battery startup function: When the UPS has no mains input, it can be activated by the battery to provide stable AC power output
Phase balance technology: good stability, even in the absence of phase can still work normally

effect
As a high voltage M-type interface board, DS200SHVMG1A is mainly used to provide interface media from the SCR of the M-frame driver to the power board and power connection card, providing a series of functions for the driver
In some contexts, the DS200SHVMG1A may also be used as a servo controller for a UPS (uninterruptible power system), with intelligent control, stable voltage output, remote monitoring, and more

argument
Power supply voltage: 200V
Power: 1800W
Operating temperature: -40°F to +150°F (-40°C to +65°C)
Storage temperature: -40°C to +85°C
Energy consumption: Maximum 4.6 watts (or mention 10.5 watts, which may be power consumption under different conditions)
Equipped with interfaces: RS422 interface hardware, 10/100BaseT(X) ports (power consumption range of 3 watts -9.6 watts), 100Base-FX ports for 2
USB cable length: 5 meters
specification
Type: High voltage M-type interface board, a member of the Mark V series optional and replacement board
Main function: Provides interface media from the SCR of the M-frame driver to the power board (DCFB or SDCI) and the power connection card (PCCA)
Size and weight
Size: No specific size is given directly, but it is mentioned that the size of a similar product (DS200SHVIG1B) is 2x19x12.8cm and the weight is 2kg (before packaging).
Weight: There are claims of 0.82 kg, there are claims of 2kg, the specific weight may vary depending on the packaging and measurement method
