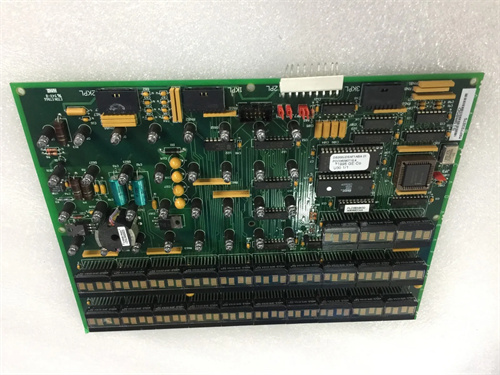

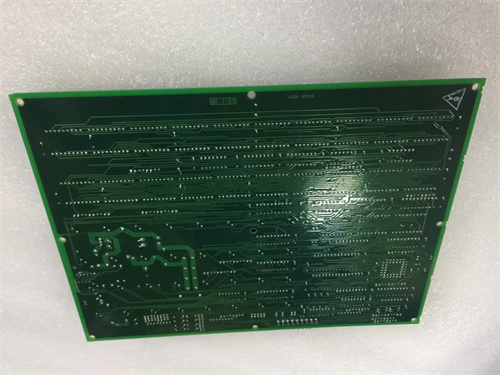

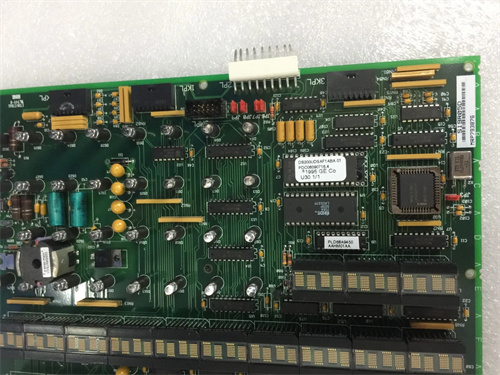

DS200NATOG2A

¥6,252.00

Parameters:

  • Voltage: 24VDC
  • Weight: 2KG (approximately)

Specifications:

  • Dimensions: 8.8 x 3.6 x 4.7 inches (external)
  • Data Capacity: 4KB
  • Processing Speed: 10 MHz
  • Operating Temperature: 0 to 60°C
  • Operating Humidity: 0% – 95% non-condensing
Category:

Description

Parameters:

  • Voltage: 24VDC
  • Weight: 2KG (approximately)

Specifications:

  • Dimensions: 8.8 x 3.6 x 4.7 inches (external)
  • Data Capacity: 4KB
  • Processing Speed: 10 MHz
  • Operating Temperature: 0 to 60°C
  • Operating Humidity: 0% – 95% non-condensing

Series:

  • NATO G2 Series

Features:

  • Multiple String Outputs: Five string outputs connected to a 20-pin ribbon connector for exporting voltage feedback signals.
  • Multiple Input Points: Each string has three in-line connectors, totaling 15 input points, enabling the module to receive and process multiple input signals.
  • Adjustable Outputs: Each output string includes two optional jumpers for adjusting or customizing the output signals.
  • CSA/UL/EC Compliance: Specifically designed to meet CSA/UL/EC standards for transient control and certification.
  • MOVs (Metal Oxide Varistors): Several MOVs prevent output voltage from being too high when the ribbon circuit is interrupted by the input voltage.

Purpose/Application:

  • GE DS200NATOG2A is widely used in industrial automation and control systems, primarily for attenuating AC and DC voltages on SCR bridges to ensure accurate export of bridge voltage feedback.
  • It finds applications in industries requiring precise voltage feedback control, such as power, energy, and manufacturing.
