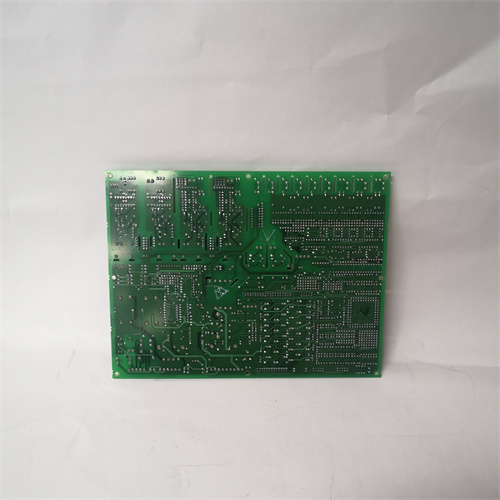

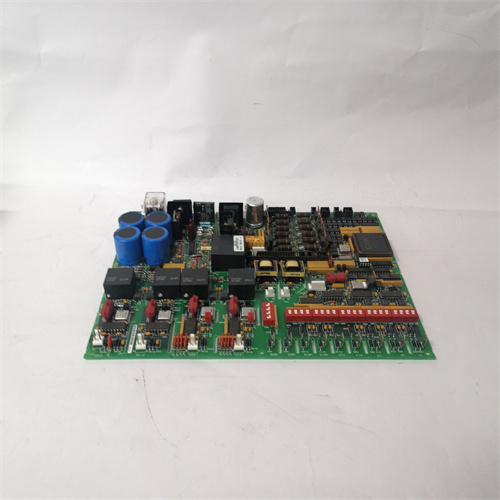

DS200DCFBG1BLC

Description

–‌Parameters & Specifications‌:

• Designed by General Electric (GE) for the Mark V series of optional and replacement boards12.
• Provides system control level power for installed drivers and supplies power to cabinet fans12.
• Source AC input rated at 38 to 115 VAC, with a frequency range of 0 to 500 kHz, depending on input voltage strength12.

–‌Dimensions & Weight‌:

• Specific dimensions and weight are not directly provided in the search results. However, it is a board designed for industrial use, likely featuring a standard form factor suitable for integration into control systems.

–‌Series Affiliation‌:

• Part of the Mark V series of optional and replacement boards from GE12.
• Cross-compatible with various GE brand exciters and drives, including DC2000, AC2000, CB2000, ME2000, and FC2000
•

–‌Key Features‌:

• High Efficiency and Stability: Utilizes efficient power conversion technology to ensure stable power output3.
• Multiple Protection Functions: Equipped with overcurrent, overvoltage, and overload protection for safe operation3.
• Configurability: Users can configure twelve jumpers and seven DIP switches on the board to meet external requirements12.
• Diagnostic Indicators: Features two LED and one neon indicators for important diagnostic and status information12.
• Modular Design: Facilitates easy installation, maintenance, and replacement4.

–‌Functions & Applications‌:

• Serves as a power board, providing critical power supplies for industrial control systems and power equipment3.
• Contains complex circuit systems designed to power most drivers, including AC/DC monitoring circuits, control level power circuits, motor excitation power circuits, and driver circuits12.
• Enables real-time monitoring and control of power status in some configurations
