Description
Configuration options:
The user can configure twelve jumpers and seven dip switches on the card to meet any external needs.
Onboard status is communicated to the user through onboard indicators, including two leds and one neon indicator.
Size and weight
Weight: Approximately 0.12 kg, but please note that this weight may vary from batch to batch and manufacturer to manufacturer.
Size: Specific size information is not explicitly mentioned in the search results, you may need to refer to the official technical documentation or product manual.
series
The DS200DCFBG1BLC is part of the GE Mark V family, whose members are cross-compatible with many GE branded exciters and drives.
Parameters and specifications
Features:

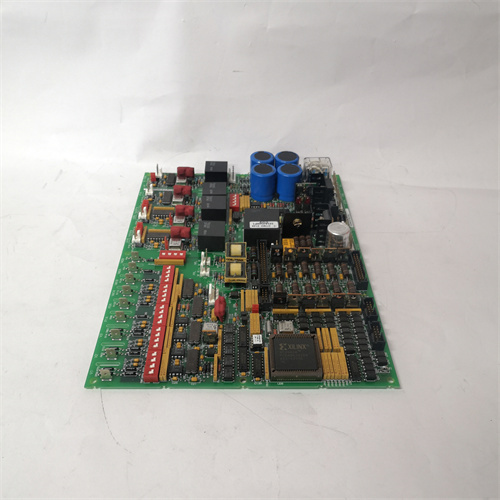

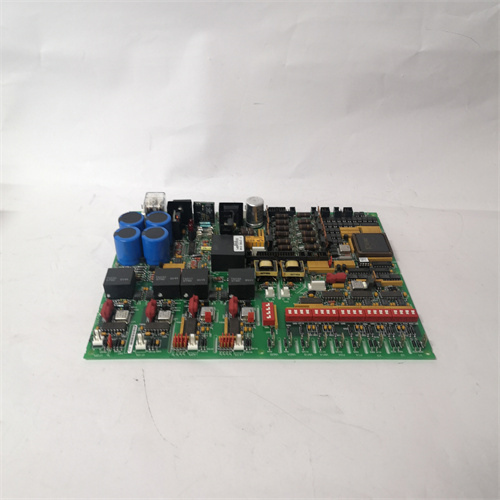

The DS200DCFBG1BLC is a power board designed by General Electric for the Mark V Series optional and replacement boards.
It provides system control level power to its mounted drives and power to the case fans.
The board’s source AC input is rated from 38 to 115 VAC, accompanied by a frequency range of 0 to 500 kHz (depending on the strength of the input voltage).
Circuit system:
The DS200DCFBG1BLC contains a number of complex circuit systems designed to power most drivers.
These circuit systems include AC/DC monitoring circuit, control level power supply circuit, motor excitation power supply circuit and drive circuit.
