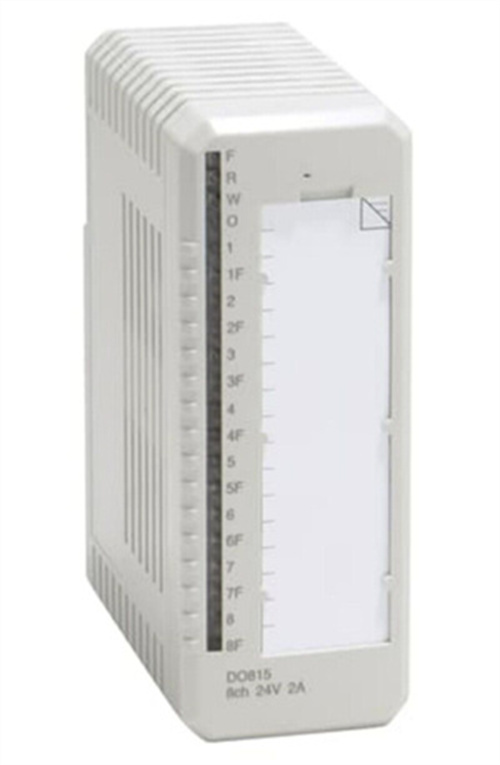

DO815

Description

‌Parameters and Specifications‌:

–‌Model Number‌: DO81512.
–‌Brand‌: ABB12.
–‌Series‌: S800 I/O Series15.
–‌Input Voltage Range‌: 12-48VDC3.
–‌Output Voltage Range‌: 5VDC (Note: This may vary, as other sources mention 10-30VDC for a similar model)1.
–‌Output Current‌: Maximum 2A @ 24VDC (for an 8-channel 24VDC model)1.
–‌Channels‌: 8 channels for digital output15.
‌Dimensions and Weight‌:

–‌Dimensions (LxWxH)‌: 170mm x 105mm x 32mm3.

–‌Weight‌: Approximately 120g3 or 0.26-0.28kg for other packaging46.
‌Series‌:

• The DO815 belongs to the ABB S800 I/O Series15.
  ‌Features‌:

–‌8-Channel Output‌: Provides eight discrete outputs for various industrial applications15.
–‌Isolation‌: Outputs are divided into two separate isolation groups, each with four channels1.
–‌Protection‌: Includes short-circuit and overload protection, as well as EMC protection components1.
–‌Indicator LEDs‌: Each output channel has an LED indicator for status monitoring1.
–‌Hot-Swappable‌: Designed for easy installation and maintenance, allowing hot-swapping without disrupting the system75.
–‌Wide Operating Temperature Range‌: Can operate in temperatures ranging from -20°C to +50°C3.
‌Applications‌:

–‌Industrial Automation‌: Used in industrial automation systems to control devices such as motors, valves, and relays5.
–‌Process Control‌: Integrates with PLC systems for precise control of discrete outputs5.
–‌Manufacturing‌: Suitable for a wide range of manufacturing processes requiring digital output control
