Description
Parameters & Specifications:

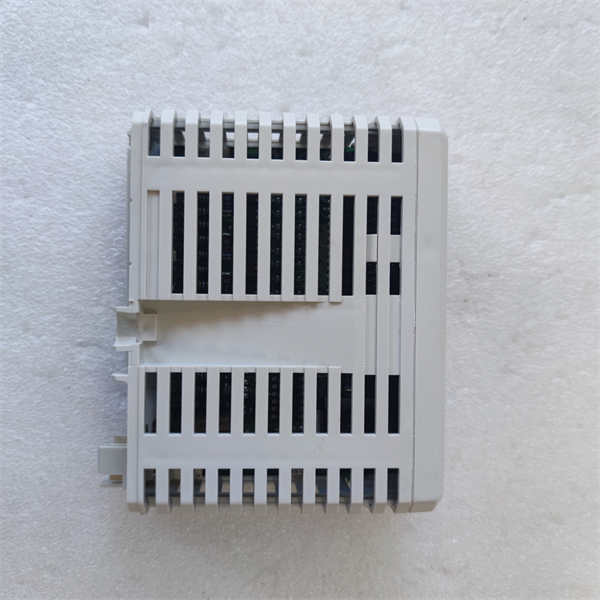

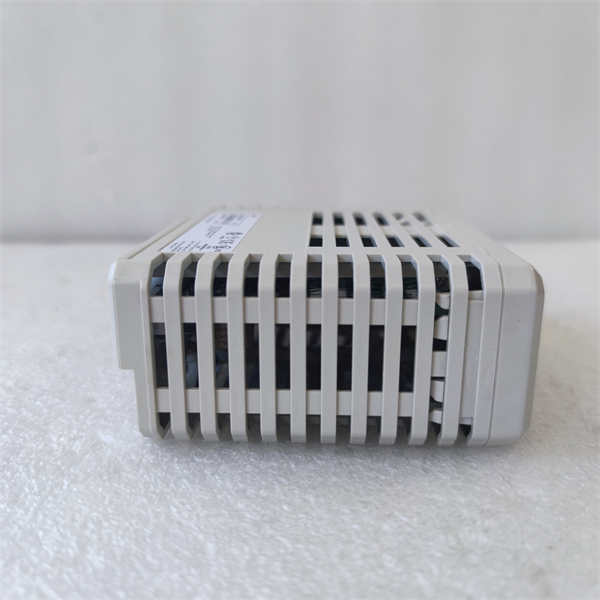

Model: DO810 (3BSE008510R1)
Digital Outputs: 16 digital output channels
Output Voltage Range: 10-30V
Maximum Continuous Output Current: 0.5A
Output Protection: Short-circuit, over-voltage, and over-temperature protection
Isolation: Two separately isolated groups, each with 8 output channels and a voltage monitoring input
Features:
Digital Output Control: The DO810 is a digital output processor module used to control digital output signals, such as those for actuators, valves, motors, and other digitally controlled devices
Communication Interface: The module communicates with control systems via industrial standard communication interfaces, receiving instructions and converting them into digital output signals
Output Status Indication: Each output channel is equipped with an LED indicator for easy monitoring and troubleshooting
Error Detection: The module features error detection capabilities, with output set to a predetermined state in case of errors
EMC Protection: Incorporates EMC protection components to ensure reliable operation in industrial environments
Applications & Role:
The ABB DO810 is widely used in industrial automation systems, particularly in manufacturing processes, power systems, and chemical plants3.
It serves as an output module in PLC (Programmable Logic Controller) or DCS (Distributed Control System) systems, transmitting control signals to external devices for process control
By integrating the DO810 into control systems, users can achieve remote control of actuators and other digitally controlled devices, enhancing automation and efficiency
