Description
trait
High precision: It can achieve accurate control and adjustment of the servo motor
Fast response: It has the feature of fast response and is suitable for application scenarios that require fast response
High stability: Designed to ensure stability and reliability
Various communication interfaces, such as SERCOS, Profibus, Profinet, etc., can be seamlessly integrated with a variety of industrial control systems
A variety of protection functions: including overcurrent protection, overload protection, short circuit protection, etc., to protect the motor and drive from overcurrent, overload and short circuit and other faults
argument
Rated current: 40 A
DC bus nominal voltage: DC 700 V
Input voltage: 200-480 V AC ±10% / 16 A / 50-60 Hz
Output voltage: 480 V AC voltage 11 A 0-1000 Hz
specification

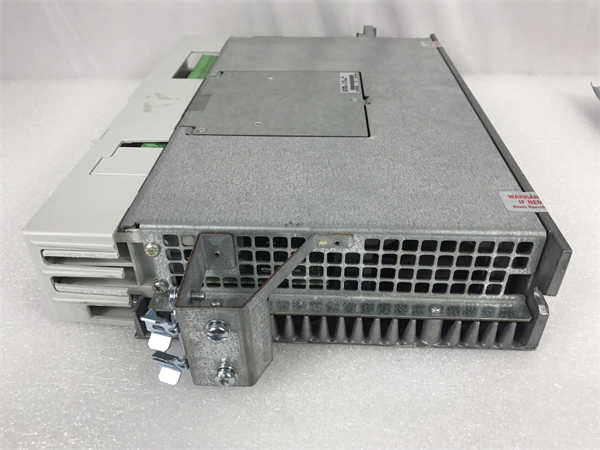

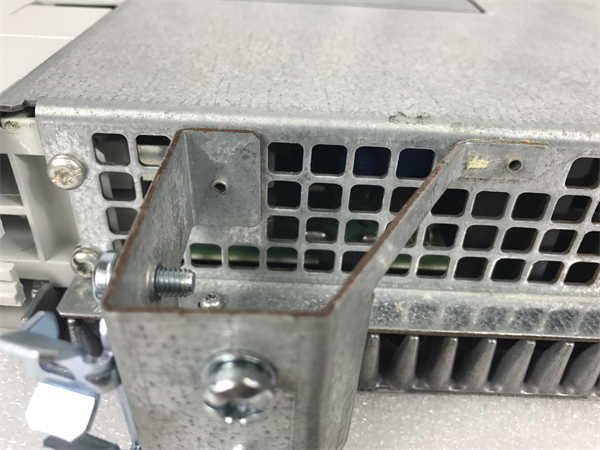

Type: Servo drive controller
Series: 02 series, 3rd edition
Brand: REXROTH/ Rexroth
Control interface: SERCOS interface, used for command communication
Size and weight
Overall dimension: 132mm105mm52mm
Net weight: 800g
