Description
Parameters and specifications

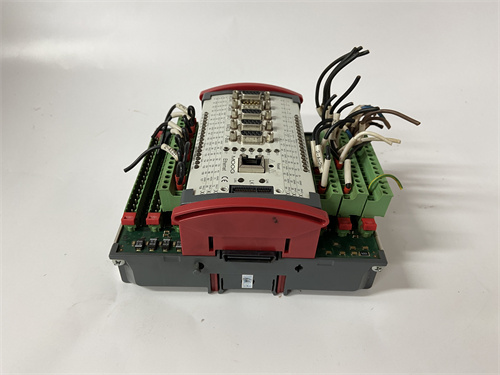

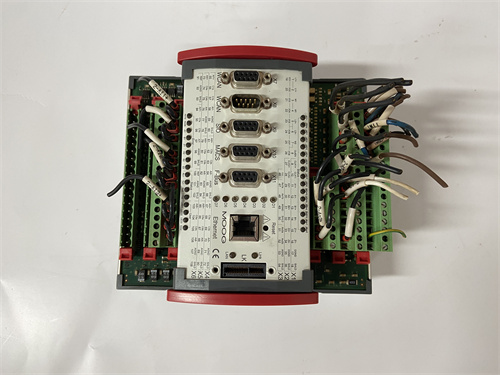

Make and Model: MOOG D136-001-007.
Features: PLC capability with high resolution analog input/output and position sensor interface.
Multi-axis control: Designed for fast, precise closed-loop control of two hydraulic servo actuators and scalable to up to 30 axes.
Bus interface: Supports EtherCAT, CAN/CANopen, Ethernet and other fieldbus protocols.
Analog IO: Input 8, output 2.
Number I/O: 8.
Sensor ports: 2.
Protection level: IP20.
CPU and memory: CPU 400 MHz, memory 128 MB running memory, 32 MB ROM.
Minimum task cycle time: 100 microseconds.
Size and weight
Dimensions: 166mm x 112mm x 36mm (another version is 160 x 170 x 85.5mm, possibly with accessories).
Weight: about 375g
trait
Modular design: modular structure for easy system installation and configuration.
High resolution analog IO: Capable of handling complex multi-axis functions for fast and precise motion control.
Multi-axis synchronization and coordination: The ability to coordinate and synchronize multiple axes and communicate with other PLCS and hosts through multiple fieldbus protocols.
Flexibility and extensibility: Multiple bus interfaces and protocols are supported for easy integration into different industrial automation systems.
