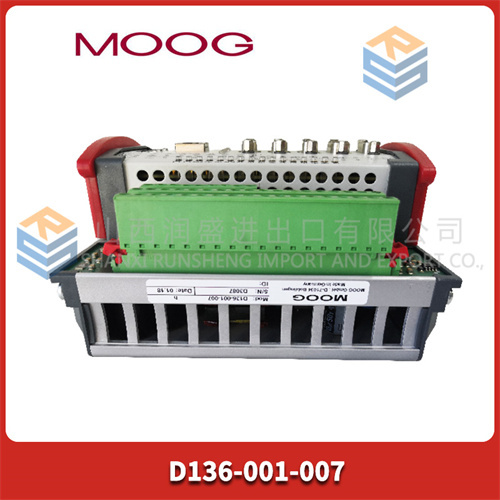

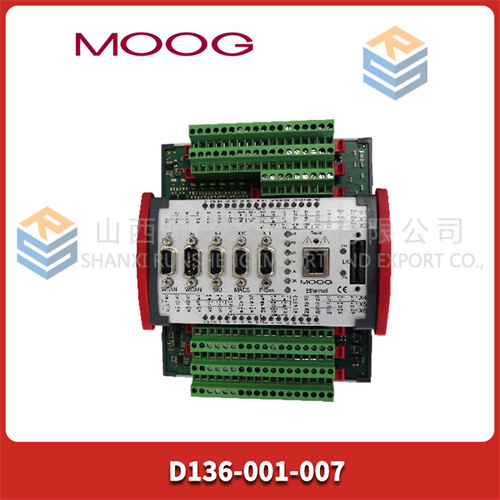

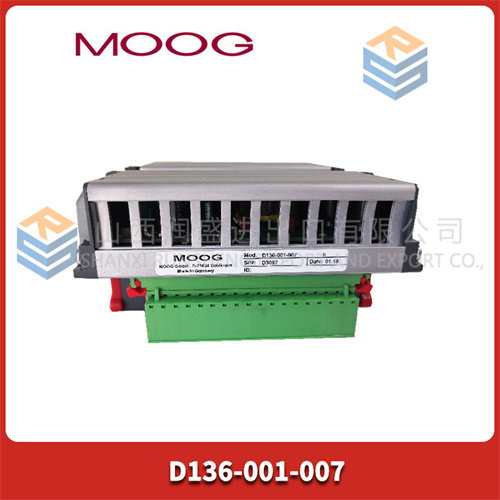

D136-001-007

Description

argument
Brand: MOOG
Model: D136-001-007
CPU: 400 MHz
Memory: 128 MB running memory, 32 MB ROM
Minimum task cycle time: 100 microseconds
Analog IO input: 8
Analog IO output: 2
Digit IO: 8
Position sensor interface: 2
Ethernet interface: 1
CAN/CANopen interface: 2
Protection level: IP20
specification
Input voltage: 24VDC (analog input/output module)
Output voltage: -0.6V DC (analog output)
Voltage range: 220VDC (may refer to the voltage range of the entire system or specific parts)
Size:
Product size (analog input/output module) : 166mm x 112mm x 36mm
Connection technology dimensions (MSC with Profibus-DP slave interface) : 160 x 170 x 85.5mm (including accessories)
Weight:
Approx. 375g (analog input/output module)
0.32kg (Controller module)
trait
PLC function: With programmable logic controller (PLC) function, can handle complex multi-axis motion control
High-resolution analog input/output: Supports high-precision analog signal input and output for applications requiring precise control
Modular structure: The modular design makes the system installation and configuration convenient and flexible
Multi-axis function: Designed to provide closed-loop control of up to 30 axes for speed and position, for applications that require multi-axis synchronization and coordination
Fieldbus interface: Supports a variety of fieldbus protocols, such as EtherCAT, Profibus DP, CAN/CANopen, etc., to facilitate communication with other devices
