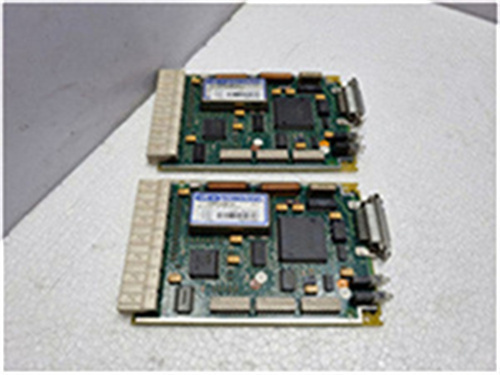

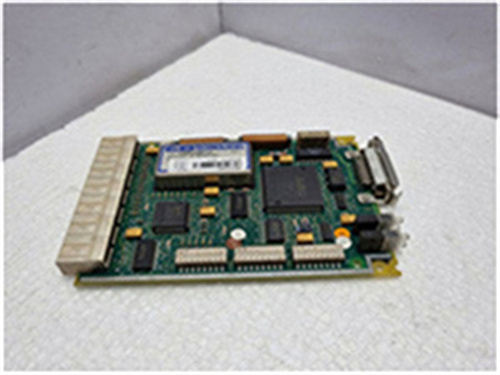

CS513

Description

1.‌Parameters and Specifications‌:
–‌Input Voltage‌: 24V DC1
–‌Communication Interfaces‌: RS232, RS485, Ethernet, USB1
–‌Memory Capacity‌: 8MB RAM, 16MB Flash1
–‌Working Temperature‌: -20°C to +60°C (may vary depending on model)12
–‌Storage Temperature‌: -40°C to +85°C1

2.‌Dimensions and Weight‌:
–‌Dimensions‌:
– Model 3BSE004772R1: 100 x 100 x 80 mm3
– Standard Controller: 120mm x 80mm x 35mm1
– Another model: 72mm x 100mm x 63mm2
–‌Weight‌:
– Model 3BSE004772R1: 200g3
– Standard Controller: Approximately 300g

3.‌Series‌:

• The CS513 belongs to ABB’s industrial controller series, specifically designed for automation applications.

4.‌Features‌:
–‌High Performance‌: Equipped with a high-speed CPU and large memory capacity for efficient data processing and storage1.
–‌Versatile Communication‌: Supports multiple communication protocols such as Modbus, Profibus, and CAN, enabling seamless integration with various devices and systems1.
–‌Expandability‌: Capable of expanding with multiple I/O modules to meet diverse control requirements1.
–‌Rugged Design‌: Suitable for operation in harsh industrial environments due to its good reliability and stability1.

5.‌Functions‌:
–‌Industrial Automation‌: Widely used in various industrial automation applications, including robot control, automated production lines, and chemical process control1.
–‌Parameter Monitoring and Control‌: In process industries, it can be used to monitor and control parameters like temperature, pressure, and flow4.
–‌Mechanical Control‌: Can be used to control electric actuators, motors, and other mechanical equipment4.
–‌Building and Energy Management‌: Suitable for building automation systems and energy management applications, controlling facilities like HVAC, lighting, and energy equipment
