Description
argument
Communication speed: CH1 communication speed is supported and can be selected between 10 Mbps and 100 Mbps, these speeds are defined in the IEEE 802.3u 10/100 Base-Tx standard.
Power Supply: 24VDC power supply is received through the CEX bus and its current consumption is up to 250 mA. Under typical operating conditions, the power consumption is 3.8W and the maximum power consumption is 6W.
Communication protocol: Support PROFINET IO communication protocol, which is a widely used in the field of industrial automation Ethernet communication protocol, can achieve efficient and stable data transmission.
specification
Protection Class: According to EN60529 and IEC 529, the module is rated IP20 (but please note that information indicates IP30), which means that it has some dust and water resistance, but it is not suitable for harsh industrial environments.

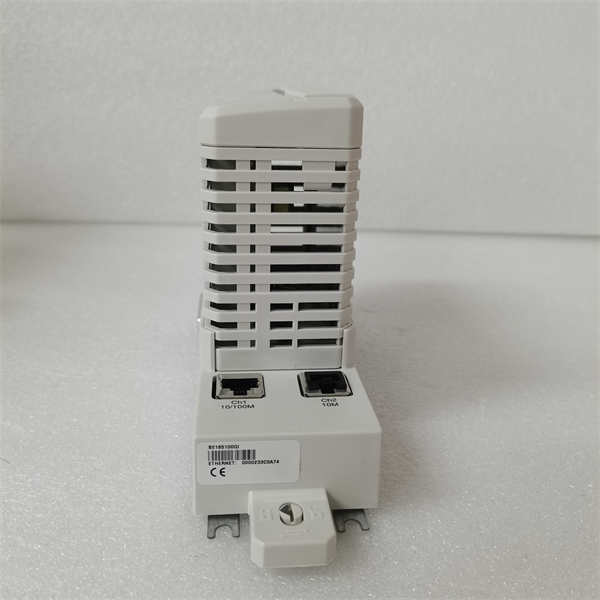

Interface: Ethernet 10/100BASE-T interface (8-pin RJ45 plug).
Size and weight
Dimensions: 59 x 185 x 127.5 mm (2.9 x 7.3 x 5.0 inches).
Weight: 500g (700g with packaging). Please note, however, that the information states that it weighs 2KG
trait
Status indicator: Has a status indicator, when the normal operation, the indicator is green; If an abnormal fault occurs, the indicator will turn red. In addition, there are two traffic lights (RxTx1 and RxTx2) to indicate the communication status.
Design: The use of corrugated aluminum to strengthen the housing design, improve the durability and stability of the module.
Flexibility: Supports a variety of communication protocols and speed options, providing flexible data transmission solutions.
