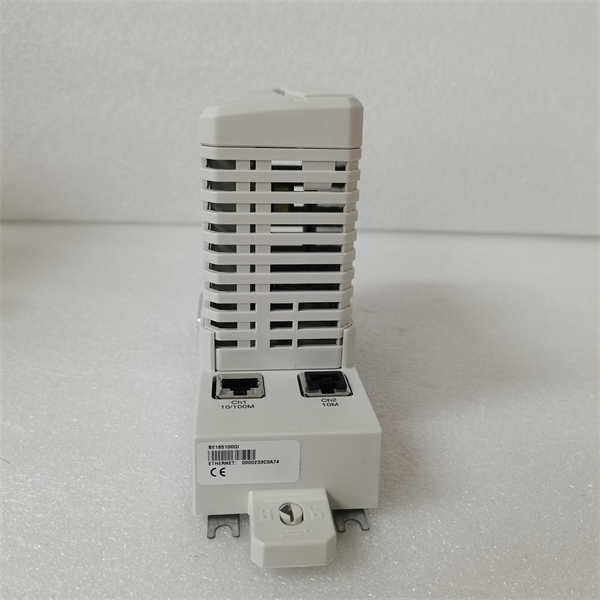

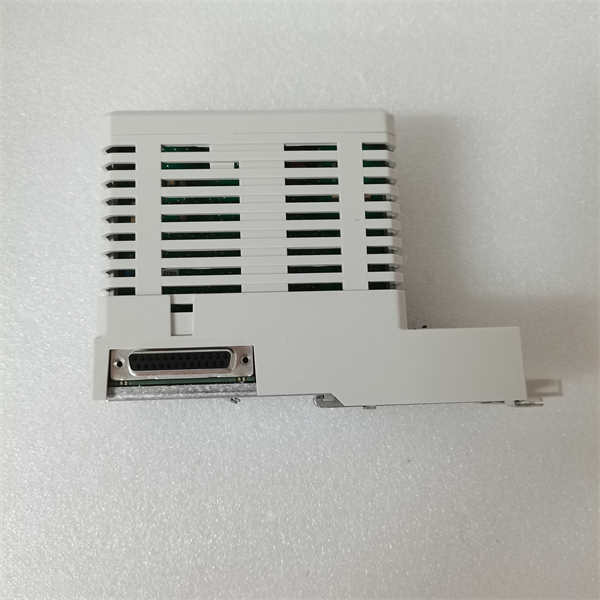

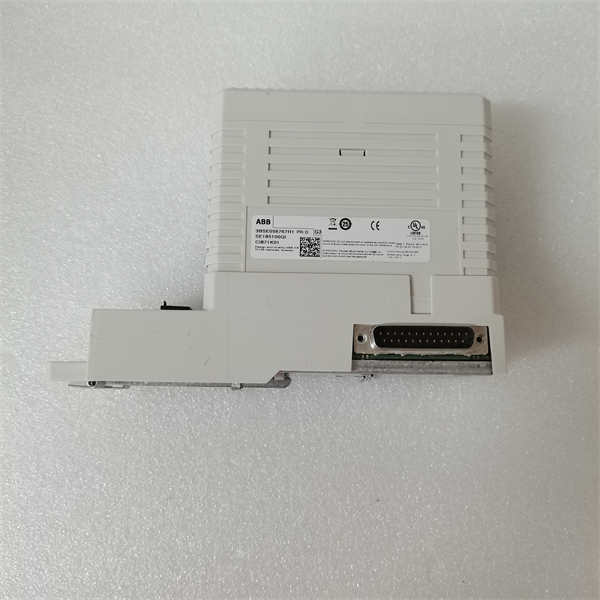

CI871K01 3BSE056767R1

Description

Parameter Specifications

1. Power Supply: The CI871K01 3BSE056767R1 operates on a 24V DC power supply. The power consumption is relatively low, around 10 – 15W, making it energy – efficient for continuous operation in industrial settings.
2. Communication Interface: It is equipped with high – speed communication interfaces. It supports Ethernet communication with a data transfer rate of up to 100Mbps. Additionally, it adheres to industrial – standard communication protocols such as Profibus DP and Modbus TCP, enabling seamless integration with a wide range of industrial devices and control systems.
3. I/O Channels: This module features a set of input/output channels. There are 16 digital input channels that can receive signals from sensors like proximity sensors, limit switches, and photoelectric sensors. And it has 16 digital output channels to control actuators such as solenoid valves, relays, and contactors.
4. Operating Temperature Range: Designed to function in a wide temperature range, from – 20°C to 60°C. This allows it to be used in various industrial environments, including those with extreme temperature conditions.

Applications

1. Industrial Automation: In manufacturing plants, the CI871K01 3BSE056767R1 can be used to control and monitor production lines. For example, it can manage the movement of conveyor belts, control robotic arms, and monitor the status of manufacturing equipment.
2. Process Control: In chemical and pharmaceutical industries, it can be employed to regulate chemical processes. It monitors process parameters such as pressure, temperature, and flow rate through connected sensors and controls valves and pumps to ensure safe and efficient production.
3. Building Automation: In commercial buildings, it can be used for basic control tasks such as controlling the lighting system, HVAC system, and access control devices.

Weight and Dimensions

1. Weight: Approximately 1.2 kg, which is relatively light and easy to handle during installation and maintenance.
2. Dimensions: It has a compact design, with dimensions of about 200mm (length) x 150mm (width) x 60mm (height). This small size allows it to be easily installed in standard control cabinets or small – space enclosures.

Features

1. High – speed Communication: The fast Ethernet communication and support for industrial protocols enable rapid data exchange between the module and other devices in the network. This ensures real – time control and monitoring of industrial processes.
2. Modular Design: It has a modular design, which means it can be easily integrated into existing industrial control systems. Additional modules can be added or removed as per the specific requirements of the application.
3. Diagnostic Functions: It is equipped with built – in diagnostic functions that can detect faults in the module itself, input/output channels, and communication interfaces. This helps in quick troubleshooting and reduces downtime.

Stability and Reliability

1. Robust Construction: Built with high – quality components and a sturdy enclosure, it can withstand mechanical vibrations, shocks, and electromagnetic interference commonly found in industrial environments.
2. Long – term Testing: Through extensive long – term testing, it has been proven to have a stable performance over a long service life, with a low failure rate.
3. Redundancy Options: Some configurations may support redundancy in power supply or communication, ensuring continuous operation even in the event of a single – point failure.
