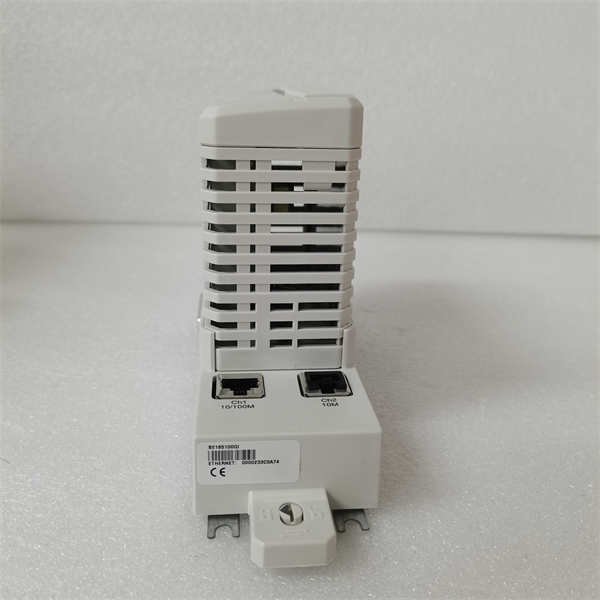

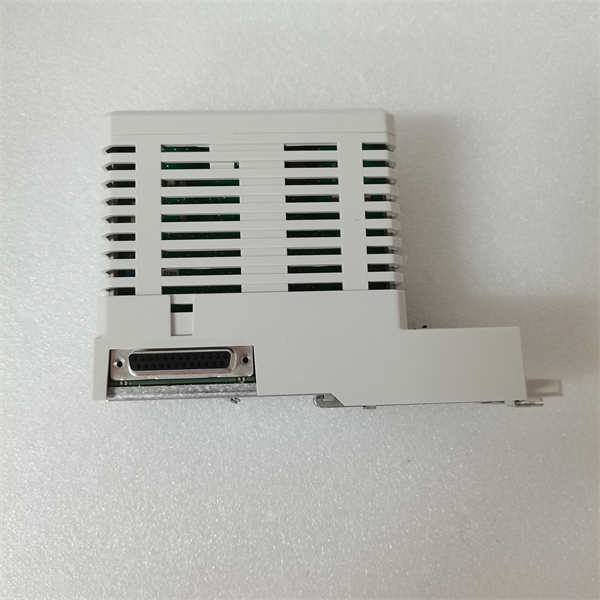

CI871K01

Description

argument
Communication protocol: Support PROFINET IO communication protocol, which is an Ethernet communication protocol widely used in industrial automation.
Communication speed: CH1 communication speed is supported and can be selected between 10 Mbps and 100 Mbps, these speeds are defined in the IEEE 802.3u 10/100 Base-Tx standard.
Power and power consumption: 24VDC power is received through the CEX bus and its current consumption is up to 250 mA. Under typical operating conditions, the power consumption is 3.8W and the maximum power consumption is 6W.
specification
Part number: 3BSE056797R1, there are also references to 3BSE056767R1.
Connector: RJ-45 female (8 pins).
Hot swap: Supported.
Size and weight
Dimensions: 59 x 185 x 127.5 mm (2.9 x 7.3 x 5.0 inches). However, in another search result, the size is mentioned as 100mm x 50mm x 20mm, which may refer to the size under different models or configurations, or there is an information error.
Weight: 500g (700g with packaging), there are also references to the weight of 2KG, which may be due to differences in packaging or configuration.
series
It is part of ABB’s industrial automation control system, in particular the communication module related to the AC 800M series.
trait
Status indicator: When the device is running properly, the indicator is green. If an abnormal fault occurs, the indicator will turn red. In addition, there are two traffic lights (RxTx1 and RxTx2) to indicate the communication status.
Protection class: According to EN60529 and IEC 529 standards, the protection class is IP20 (mentioned in some materials as IP30), which means that it has a certain dust and water resistance, but it is not suitable for harsh industrial environments.
Hot swap: Allows modules to be replaced or added without powering off the system, improving system availability and maintainability.
