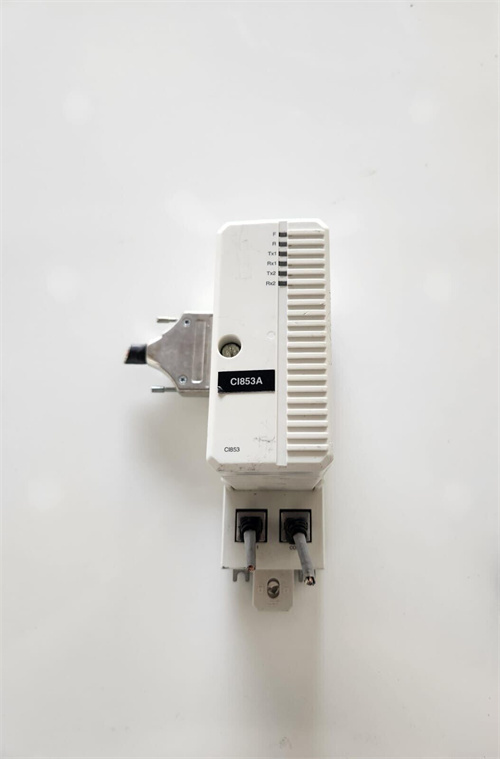

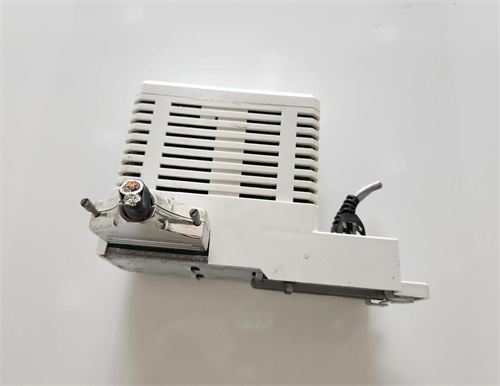

CI853K01

Description

‌Specifications & Parameters‌:

Model: CI853K01 3BSE018103R1
Voltage: 24V
Current: 100-400A
Data communication rates supported: 9.6kBit/s, 19.2kBit/s, 45.45kBit/s, 93.75kBit/s, 187.5kBit/s, 500kBit/s, 1.5MBit/s, 6MBit/s, and 12MBit/s
Supports standard communication rates and can be manually set via dip switches
Equipped with 6 bi-color LED status indicators and power failure relay output alarm
Provides 4000V lightning protection, 1.5A overcurrent protection, and 600W surge protection
Designed with EMC testing certification
Features DC9-36V wide redundant dual power supply, DC1500V power isolation, and reverse connection protection
IP30 protection rating, with a wave-patterned aluminum reinforced chassis and standard industrial 35mm rail mounting method

‌Functions‌:

Used for data transmission between controllers, supporting ABB protocols like COMLI
Compatible with Modbus RTU and other serial communication protocols
Supports hot-swapping

‌Weight & Dimensions‌:

Weight: 2KG
Dimensions: Not specifically mentioned, but typically compact for industrial use

‌Characteristics‌:

Industrial-grade design with robust protection features
Supports both master and slave modes in some communication protocols
Flexible configuration and easy to install

‌Application Areas‌:

Primarily used in industrial automation systems, especially those requiring reliable data transmission between controllers
Suitable for various industrial environments, including power plants, steel plants, cement plants, ships, and papermaking industries
