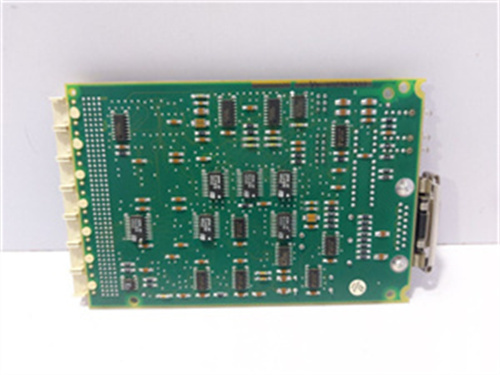

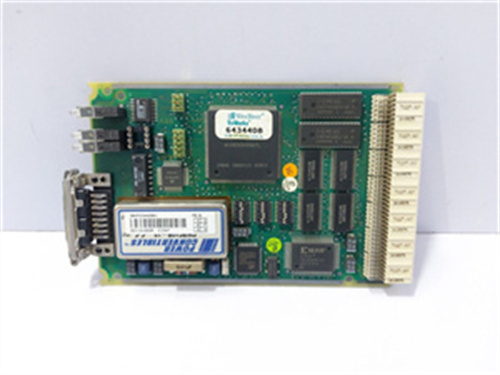

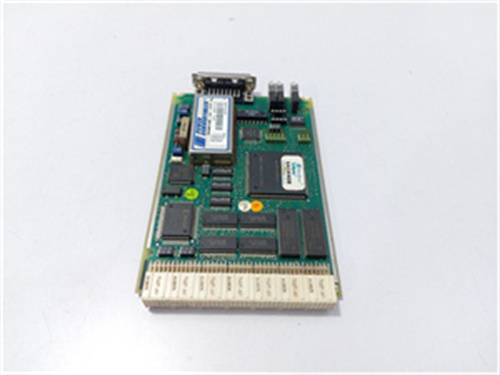

CI547

Description

argument
Maximum continuous voltage: 48VDC, maximum continuous current 6Amps; Peak voltage 60VDC, peak current 12Amps
Power: 0.1kW-7.5kW
Control mode: position mode, speed mode, torque mode, built-in Motion function
Control frequency: PWM chopper control, control frequency is 16k ~ 80kHz optional
Operating temperature range: -55℃ ~ 65℃
Storage temperature range: -40℃ to +70℃
specification
Product Type: Controller unit module, commonly used in industrial automation and control systems
Manufacturer: ABB or Siemens (Note: there are inconsistencies in search results, but most point to ABB)
Communication interface: USB parameter read and write, Modbus, optional CAN communication
Support encoders: incremental encoder, provincial encoder, Tama Chuan encoder, NIKON encoder, etc
Support motor type: MS/MA/MY rotary servo motor, MD/MR Direct drive motor, support for third-party motor adaptation
Size and weight
Dimensions: 170mm x 105mm x 32mm
Weight: About 120g
series
Series: It is not clearly indicated that it belongs to a specific series, but it is a module of the AC 800M controller
trait
High performance processing power: Quickly respond to various control instructions to achieve accurate and efficient control operations
Multiple control modes: position mode, speed mode and torque mode are supported
Flexible communication interface: such as USB, Modbus, etc., to facilitate data interaction and communication with other devices and systems
Wide encoder compatibility: Support for multiple encoder types
Good temperature adaptability: Ensure stable and reliable performance of the driver under specific temperature requirements
Compact design: Easy to install and suitable for various industries
High efficiency: greater than 90%, helps to reduce energy consumption
effect
Industrial automation control: As a controller unit module, the control algorithm is implemented in the industrial automation and control system, and the system is operated by logic control and motion control
System integration: By providing a variety of communication interfaces, to achieve data communication and remote monitoring with other equipment or host computer, integrated into a complex industrial control network
Precise control: Support a variety of control modes and encoder types to meet the precise control needs of different applications
