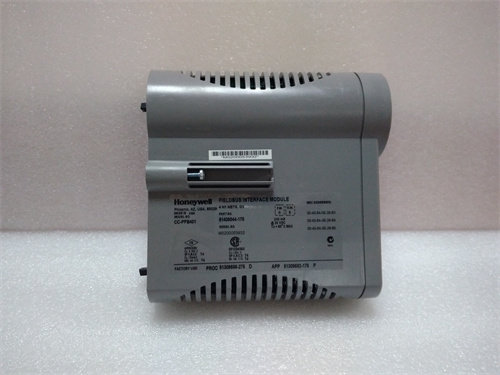

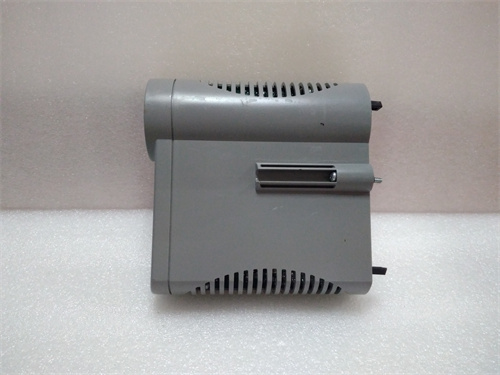

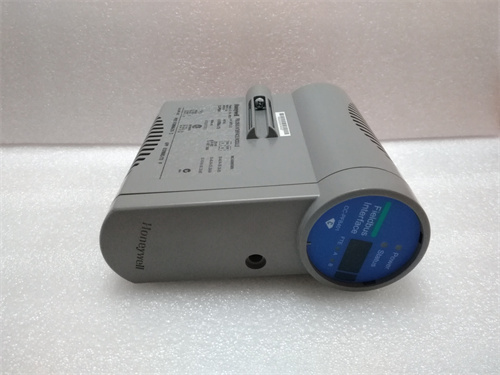

CC-PFB401

Description

argument
Voltage: The input voltage may include 24VDC (according to [3]) or a wider voltage range, but it depends on the application environment. Output voltage is also supported at 24VDC (according to [3]).
Current: According to [5], the current ranges from 100-400A, but please note that this may be different from the actual operating current of the module, as fieldbus interface modules usually do not handle such large currents directly.
Output current: For analog output, a current output of 4 to 20mA is usually supported (according to [3]).
Voltage range: May include 220VDC (according to [3]).
Communication rate: Several Fieldbus protocols are supported, including H1 FOUNDATION Fieldbus, and the communication rate depends on the protocol used.
Available cycle: 250, 500 ms; 1, 2, 4, 8, 16, and 32 seconds (according to [1]).
specification
Product type: Fieldbus interface module
Module type: Series C module
Physical interface: H1 FOUNDATION Fieldbus
Configuration: Non-redundant or redundant (side-by-side)
Maximum number of fieldbus devices per H1 network: 16
dimension
Product size: 166mm x 112mm x 36mm (according to [3]).
weight
Product weight: about 375g (according to [3]), there is also other information indicating a shipping weight of 3Kg (according to [1]) or 2KG (according to [5]), which may be related to the packaging and mode of transport.
series
Series: A family of fieldbus interface modules from Honeywell.
trait
Communication capability: Supports a variety of fieldbus protocols, and can seamlessly connect and communicate with various devices and systems.
Analog input /HART input function: Support high level analog and HART input, can receive analog signals from various sensors, and convert them into digital signals for processing.
Analog output /HART output function: The ability to convert the processed digital signal into an analog signal output to drive the actuator or sensor.
Digital input/output function: The digital input channel can receive signals from discrete sensors, while the digital output channel can control switches, valves and other actuators.
Easy installation, configuration, and maintenance: Provides a variety of status indicators and fault diagnosis functions to facilitate troubleshooting and maintenance.
effect
Industrial automation systems: CC-PFB401 plays a key role in industrial automation systems, as a fieldbus interface module, to achieve data transmission and communication between different devices and systems, ensuring the real-time and accuracy of information.
Data processing and exchange: With its powerful communication capabilities and analog/digital input/output capabilities, the CC-PFB401 is able to efficiently process a wide range of industrial data and convert it into signals that can be used to control actuators or sensors.
