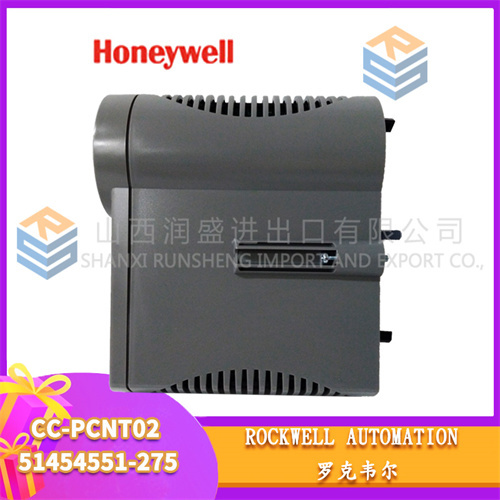

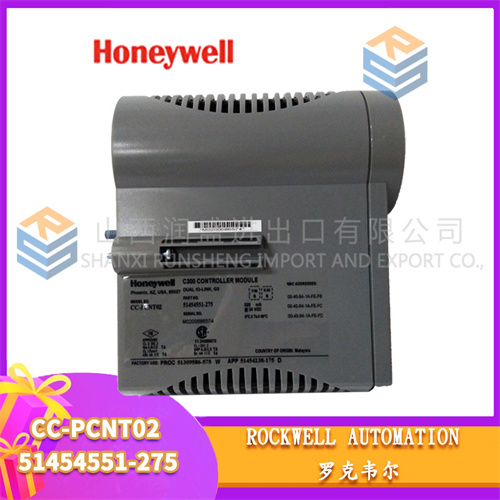

CC-PCNT02

Description

CC-PCNT02

1. Parameter Specifications

• Power Supply: The CC – PCNT02 usually operates on a 24V DC power supply. The power consumption is relatively low, around 5 – 8W, which is energy – efficient for long – term continuous operation.
• Input/Output Configuration:
  • Pulse Inputs: It is mainly designed for pulse counting applications and has 2 high – speed pulse inputs. These inputs can handle pulse frequencies up to 100kHz, enabling accurate counting of high – speed pulses from sensors such as encoders.
  • Digital Outputs: There are 2 digital outputs. Each output can drive a load with a maximum current of 0.5A, suitable for controlling small relays or indicator lights.
• Communication Interfaces: It supports an RS – 485 serial communication interface with the Modbus RTU protocol. This allows it to communicate with other Modbus – compatible devices and control systems, facilitating data exchange and remote monitoring.

2. Applications

• Industrial Automation: In industrial manufacturing, the CC – PCNT02 is widely used for speed and position control. For example, it can be used to count the pulses from an encoder attached to a motor shaft to measure the motor’s speed and position accurately. This is crucial for applications such as conveyor belt speed control, robotic arm movement control, and machine tool positioning.
• Packaging Machinery: In packaging machines, it can count the number of products passing through a specific point on the production line. By accurately counting the products, it can control the packaging process, such as triggering the packaging mechanism at the right time.
• Flow Measurement: In fluid flow measurement systems, it can count the pulses generated by a flow meter. Based on the pulse count, the flow rate and total flow volume can be calculated.

3. Weight and Dimensions

• Weight: The module weighs about 0.15 kg, which is very light and easy to install and handle.
• Dimensions: The overall dimensions are: length – 70mm, width – 50mm, height – 15mm. Its compact size allows for installation in tight spaces, such as inside small control boxes or on equipment panels.

4. Features

• High – Speed Pulse Counting: The ability to handle pulse frequencies up to 100kHz makes it suitable for high – speed applications, providing accurate counting results even in fast – moving systems.
• Modbus Compatibility: The support for the Modbus RTU protocol on the RS – 485 interface simplifies integration with other industrial devices and control systems. This enables seamless data sharing and system expansion.
• Easy Configuration: It has a simple configuration process, which can be easily understood and implemented by users with basic technical knowledge. Users can set parameters such as counting mode, preset value, and reset conditions through the Modbus interface.

5. Stability and Reliability

• Robust Construction: The module is housed in a durable plastic enclosure that provides protection against dust, moisture, and minor mechanical vibrations. This ensures stable operation in normal industrial environments.
• Fault – Tolerant Design: It is designed with built – in protection mechanisms such as over – current protection for the digital outputs. These features safeguard the module from electrical faults and extend its service life.
• Quality Components: The use of high – quality electronic components and strict quality control during manufacturing ensure long – term reliability and consistent performance.

6. Real – world Examples

• Automotive Assembly Line: In an automotive assembly line, the CC – PCNT02 is used to control the movement of a robotic arm. It counts the pulses from an encoder on the robotic arm’s motor to accurately position the arm for tasks such as welding or painting.
• Beverage Filling Machine: In a beverage filling machine, it counts the number of bottles passing through the filling station. Based on the count, it controls the filling process, ensuring that each bottle is filled with the correct amount of beverage.
