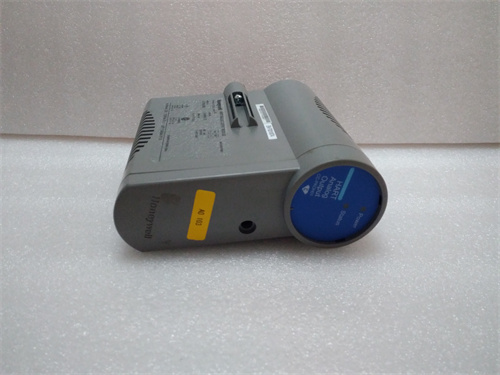

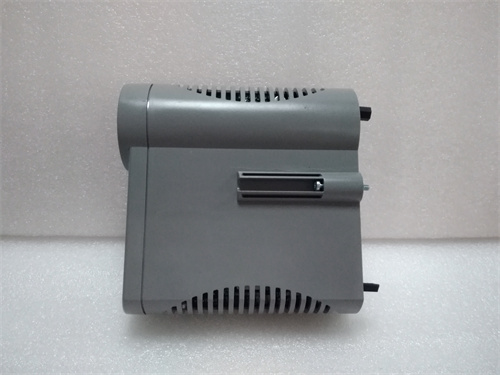

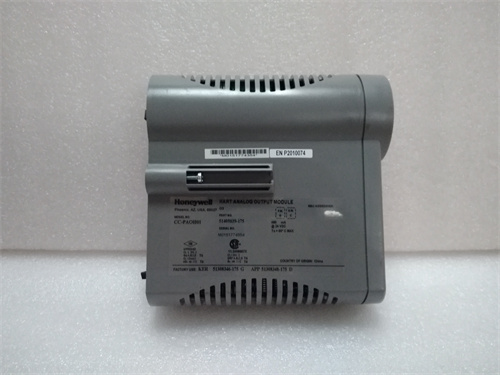

CC-PAOH01

Description

effect
Analog signal conversion: CC-PAOH01 module can receive analog signal input (such as voltage, current, etc.) and convert it to digital signal output.
Industrial control: Due to its high reliability, performance and stability, the CC-PAOH01 module is suitable for a variety of harsh industrial environments for precise industrial control and monitoring.
System protection: provides a variety of protection functions to ensure the safe operation of equipment and systems.

trait
Housing and installation: IP30 protection grade, corrugated aluminum reinforced housing, using standard industrial 35mm rail mounting.
Power and protection: Support DC9-36V wide redundant dual power supply, with DC1500V power isolation and reverse protection, as well as lightning protection (4000V), overcurrent protection (1.5A) and surge protection (600W).
Communication and interface: Support standard communication rate, can be set manually or through rate adaptive adjustment, with 9-pin Sub_D jack connector, support Profibus DP bus standard.
Indicators and relays: Features 6 two-color LED status indicators and power failure relays to output alarms.

Parameters and specifications
Size: The overall size is 132mm105mm52mm.
Weight: The net weight is 800g, but different weight values may be given in some descriptions, such as 0.3kg, which may be due to differences in information from different sources or product models.
Series: C300 series.
Operating temperature: -10-70℃ (optional wide temperature range of -40~+85℃).
Relative humidity: ≤90% (no condensation).
Storage temperature: -40 ~ 80℃.
