Description
Parameters and specifications:

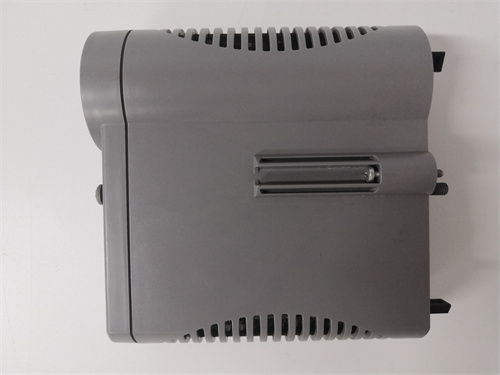

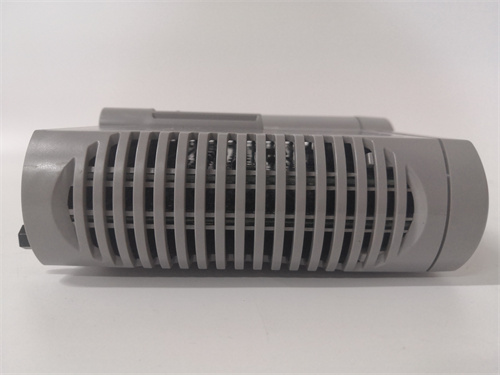

Features: CC-PAIX01 is a distributed control system module manufactured by Honeywell for use in industrial automation systems. Its main function is to convert digital signals to analog signal output to meet the control needs of industrial equipment.
Number of interfaces: It has 16 digital input channels and 16 digital output channels.
Input voltage: 24VDC.
Input type: TTL/CMOS.
Output voltage: 24VDC.
Output current: 0.5A.
Switch capacity: 2000VA (may be related to the specific model or configuration, this value is for reference).
Contact current: 8A (2CO).
Contact voltage: 440VAC/300VDC.
Rated load: 8A 250VAC/8A 30VDC.
Contact material: silver alloy.
Contact resistance: ≤100mΩ(1A 6VDC).
Insulation resistance: more than 1000MΩ (500VDC).
Action time and release time: both are 20ms.
Operating temperature: 0℃~60℃ (operation), -40℃~85℃ (storage).
Working humidity: 10%~90%RH (no condensation).
Size and weight:
Size: 90mm×125mm×27mm (length × width × height).
Weight: about 19g (may be related to the specific model or configuration, this value is for reference).
Series:
The CC-PAIX01 is part of a family of Honeywell products commonly used in industrial automation and control systems.
Features:
High reliability: Designed for long-term stable operation in a variety of harsh industrial environments.
Flexibility: It has a variety of interfaces, installation methods and installation positions, so that it can flexibly adapt to different application environments.
Integration: Usually integrated in an industrial automation system, and equipped with standard industrial communication interfaces (such as Modbus, HART, etc.), so that it can easily exchange data and work together with other control equipment and monitoring systems.
Configuration options: Provides a wide range of configuration options, allowing engineers to configure and adjust according to specific application requirements.
Functions:
The CC-PAIX01 module is capable of generating analog output signals (typically 4 to 20 milliampere (mA) signals), which are very common in industrial control and can be used to control valves, motors, actuators and other equipment to achieve regulation and control of engineering processes.
It typically has multiple analog output channels, each of which can be configured independently to output a different analog signal, facilitating complex industrial control.
