Description
Parameters and specifications

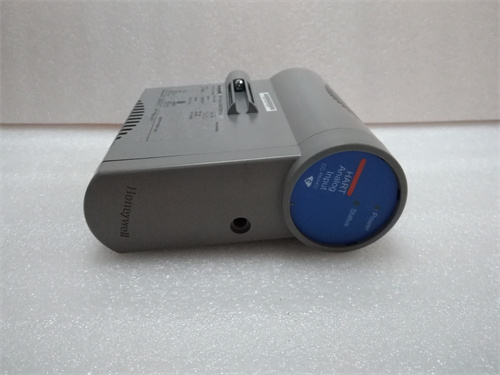

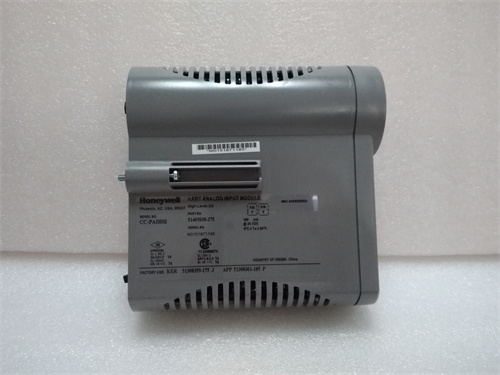

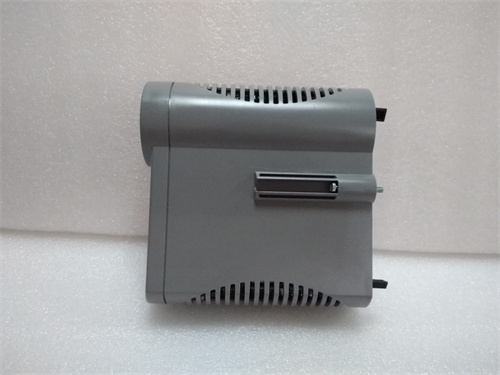

Type: HART analog input module
Number of channels: 16 channels are supported, including 12 single-ended channels and 4 differential channel3
Input signal type: analog signal
Input range:
Current signal: 0-20 mA, 4-20 mA
Voltage signal: 1-5 VDC, 0-5 VDC
Input impedance: 250Ω, 500Ω, 1200Ω, 2500Ω
Accuracy: +/-0.10% F.S.@ 25°C
Linearity: +/-0.05% F.S.
Response time: 200 ms
Internal power monitoring: +5 VDC +/-5% @ 50 mA, +24 VDC +/-5% @ 50 mA
A/D converter resolution: 16 bits
Common mode rejection ratio: 70 dB
Normal rejection ratio: 60 dB
Power: 60W
effect
Data acquisition: Used to collect analog signals such as current and voltage signals from sensors, transmitters and other devices
Industrial automation: In industrial automation systems, as part of the control system, analog signals from the field are received and converted into digital signals for processing and control
System integration: It can be integrated with control systems from Honeywell or other manufacturers for data sharing and collaborative work
