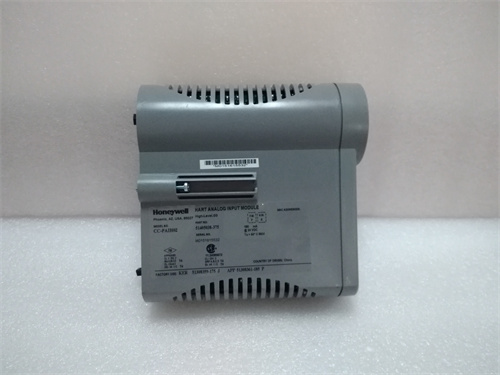

CC-PAIH02

Description

Size and weight
Weight: About 0.3kg
series
The CC-PAIH02 may belong to a specific Honeywell family, but the specific family name is not explicitly mentioned.
trait
HART communication: Allows modules to communicate with HART-enabled devices such as transmitters and sensors
Comprehensive self-diagnosis: Provides a range of self-diagnostic functions for troubleshooting
Optional redundancy: Configurable redundancy for higher reliability
Broken line detection: helps protect the module from damage caused by broken lines
Non-combustion power supply: suitable for use in hazardous areas
Integrated wiring: reduced occupation area, double row terminal, easy installation and maintenance
Unique thermal management: Increase product life
effect
Industrial Automation applications: CC-PAIH02 is a versatile and reliable analog input module for a variety of industrial automation applications such as process control, temperature monitoring, level measurement, flow measurement, pressure measurement, etc
Data acquisition and conversion: The ability to collect and convert analog signals and convert them into digital signals for use by the control system

argument
Manufacturer: Honeywell
Number: CC-PAIH02
Type: Hart analog input
Input signal type: analog signal
Input range: 0-20 mA, 4-20 mA, 1-5 VDC, 0-5 VDC
Input impedance: 250Ω, 500Ω, 1200Ω, 2500Ω
Accuracy: +/-0.10% F.S.@ 25°C
Linearity: +/-0.05% F.S.
Response time: 200 ms
Internal power monitoring: +5 VDC +/-5% @ 50 mA, +24 VDC +/-5% @ 50 mA
Power: 60W
specification
Number of channels: 16 channels are supported, which may include 12 single-ended channels and 4 differential channels
A/D converter resolution: 16 bits
Common mode rejection ratio: 70dB
Normal rejection ratio: 60dB
